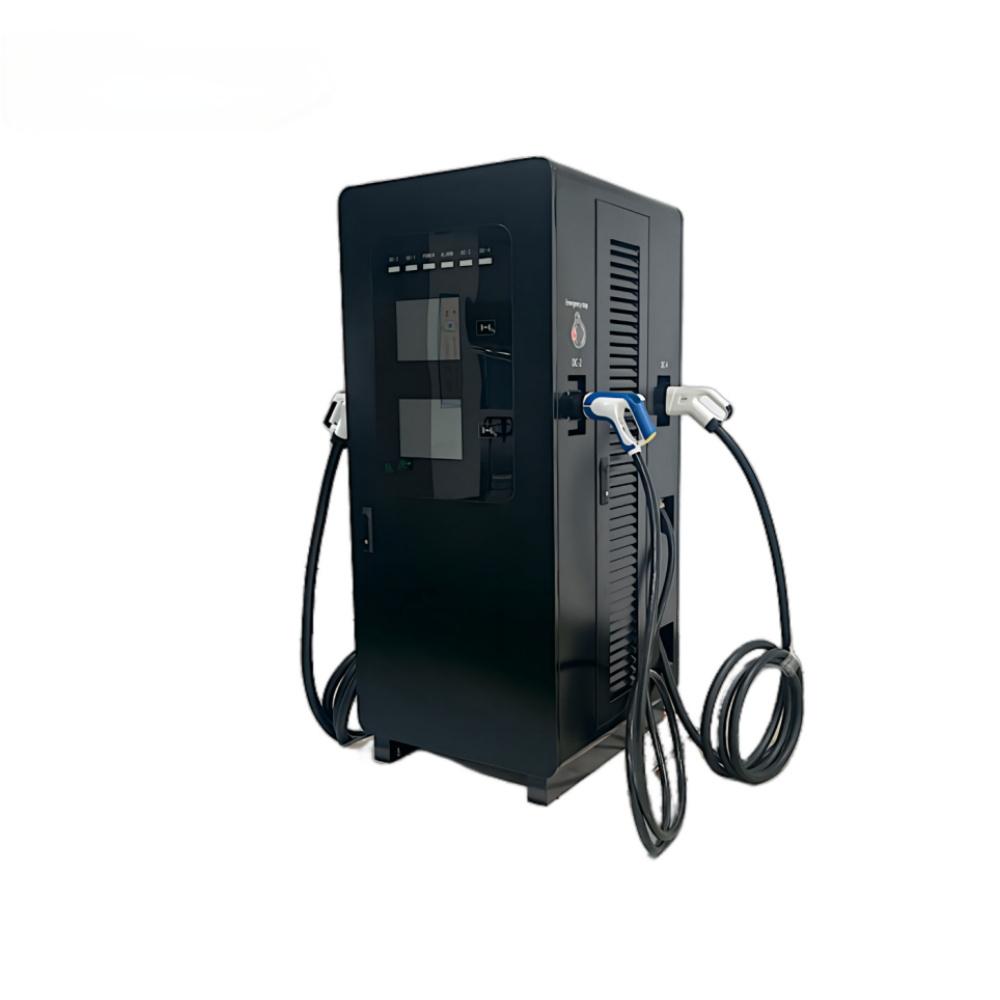

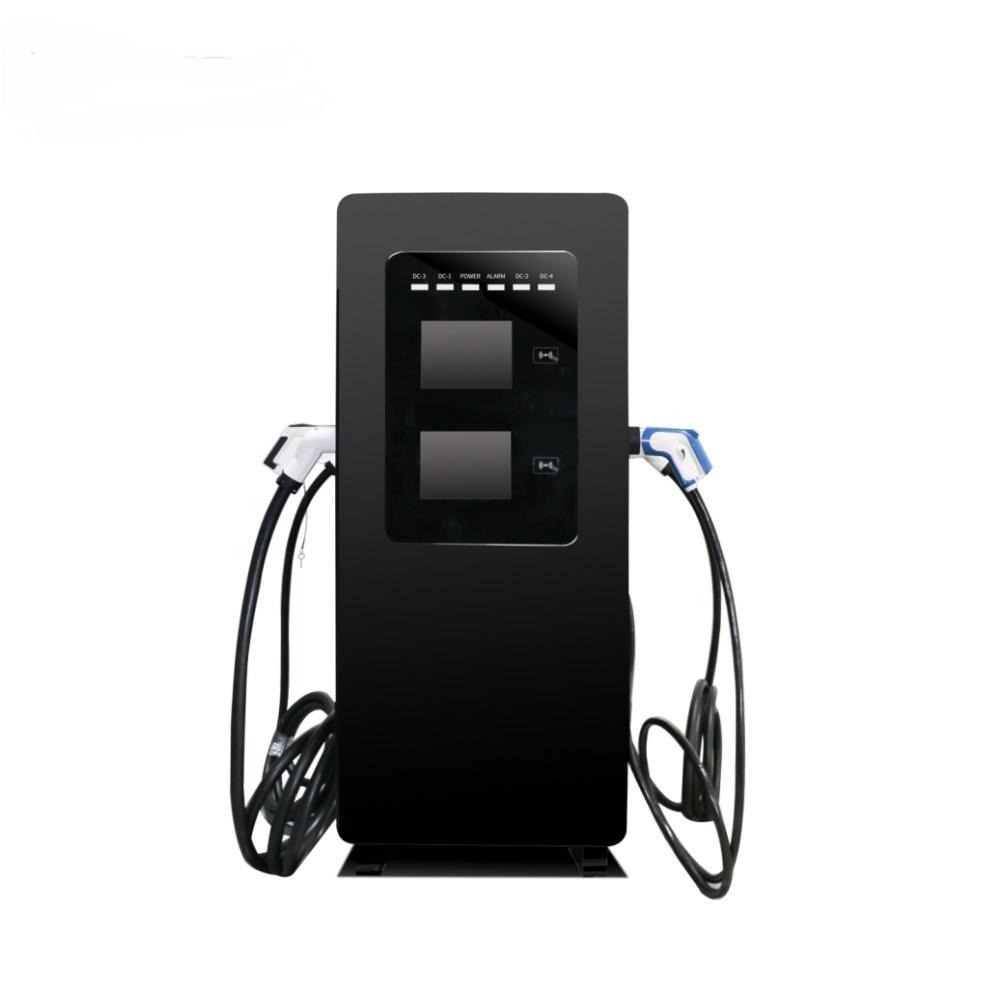

180kw 240kw 300Kw Outdoor Public Ccs2 Chademo Electric Car Bus
Dc Ev Fast Charging Station Charger for electric vehicle
Rate Power:60kw 90kw 120kw 150kw 180kw 240kw
Input Voltage:400V±15%
Input Voltage Type:TN-S(Three Phase Five Wire) AC Grid
Frequency:45-65Hz
Output Voltage:150V-1000V
Output Voltage Error:≤0.5%
Output Current Error:When Output current≥30A:≤±1%
When output current< 30A:≤±0.3A
Power Factor:≥0.99
Leakage current:≤10mA
Power Frequency Withstand Voltage:2500VAC
Simultaneously charging up to 3 EVs
Item | PowerDC 60kW; AC 22kW/44kW | DC 90kW; AC 22kW/44kW | DC 120kW; AC 22kW/44kW |
Input | Input Voltage | 3-phase 400V ±15% AC | |
Input Voltage Type | TN-S (Three Phase Five Wire) | ||
Working Frequency | 45~65Hz | ||
Power Factor | ≥0.99 | ||
Efficiency | ≥94% | ||
Output | Rated Voltage |
DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V |
|
Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
Interface | Display | 8'' LCD Touchscreen | |
Language | Chinese, English, French, German, Spanish, Russian, etc. | ||

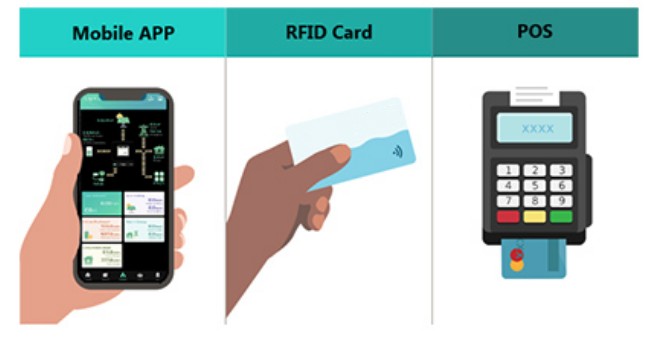

Payment | Mobile APP/RFID/POS | ||
Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
Communication Protocols | OCPP1.6J or OCPP2.0 | ||
Working Environment | Working Temperature | -30°C ~ +55°C | |
Storage Temperature | -35°C ~ +55°C | ||
Operating Humidity | ≤95% Non-Condensing | ||
Protection | IP54 | ||
Acoustic Noise | <60dB | ||
Cooling Method | Forced Air-Cooling | ||
Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
No. of Charging Cable | Single | Dual | |
Cable Length | 5m or 7m | ||
Regulation | Certificate | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 |
