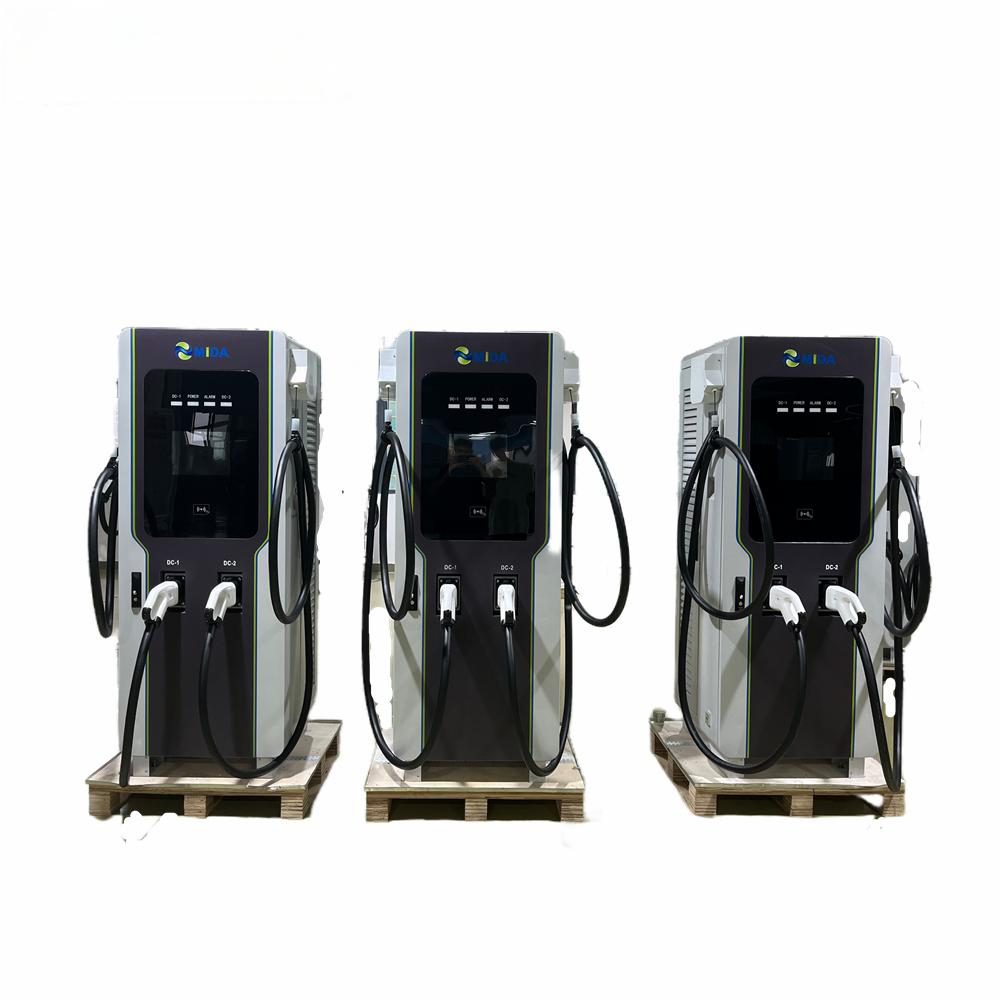

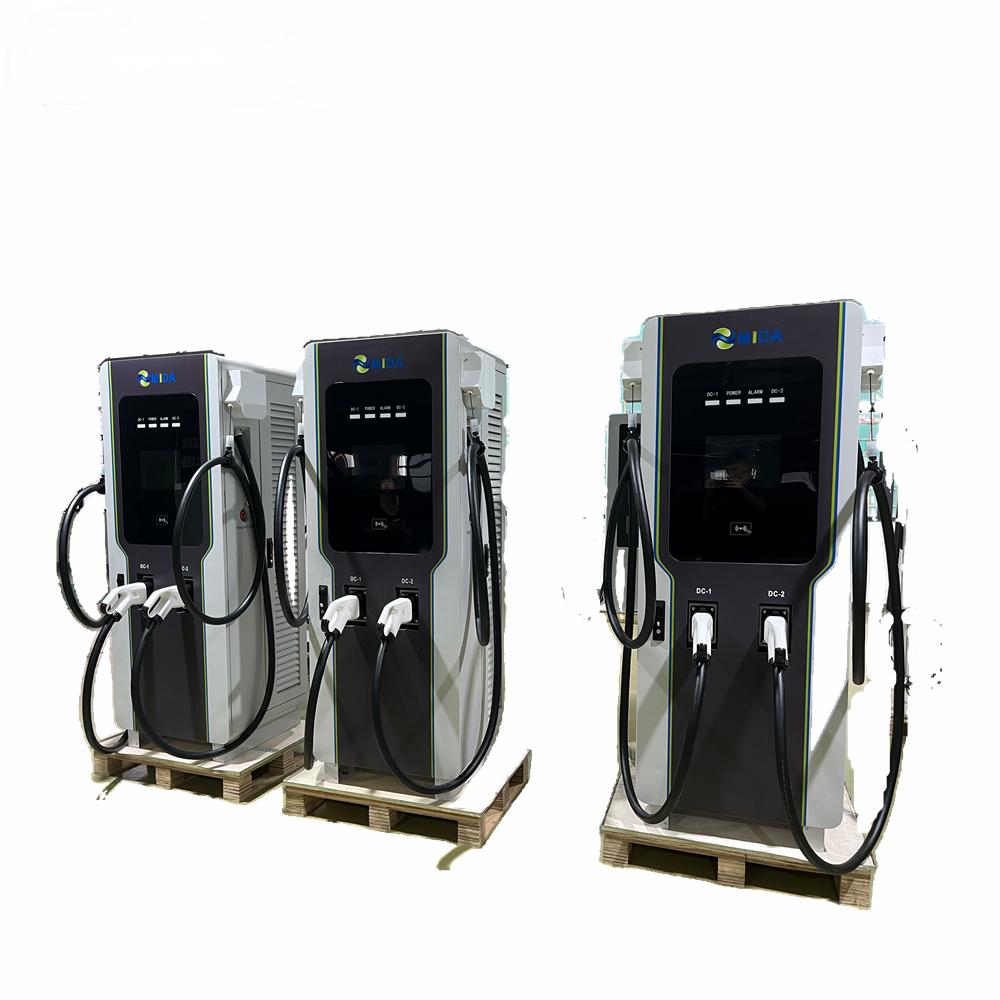

180kw 240kw 300Kw Outdoor Public Ccs2 Chademo Electric Car Bus
Dc Ev Fast Charging Station Charger for electric vehicle
Rate Power:60kw 90kw 120kw 150kw 180kw 240kw
Input Voltage:400V±15%
Input Voltage Type:TN-S(Three Phase Five Wire) AC
Grid Frequency:45-65Hz
Output Voltage:150V-1000V
Output Voltage Error:≤0.5%
Output Current Error:When Output current≥30A:≤±1%
When output current< 30A:≤±0.3A
Power Factor:≥0.99 Leakage current:≤10mA
Power Frequency Withstand Voltage:2500VAC
Simultaneously charging up to 3 EVs
Easy to Use
Wall-mount or Pedestal-mount
Multi-standard Charging
General Specifications
Item
PowerDC 60kW; AC 22kW/44kW
DC 90kW; AC 22kW/44kW
DC 120kW; AC 22kW/44kW
Input
Input Voltage
3-phase 400V ±15% AC
Input Voltage Type
TN-S (Three Phase Five Wire)
Working Frequency
45~65Hz
Power Factor
≥0.99
Efficiency
≥94%
Output
Rated Voltage
DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc;
AC - Type-2 400V; GBT 400V
Max. Output Current
DC - CHAdeMO 125A; CCS 200A; GBT 250A;
AC - Type-2 63A; GBT 32A
Interface
Display
8'' LCD Touchscreen
Language
Chinese, English, French, German, Spanish, Russian, etc.
Payment
Mobile APP/RFID/POS
Communication
Network Connection
4G(GSM or CDMA)/Ethernet
Communication Protocols
OCPP1.6J or OCPP2.0
Working Environment
Working Temperature
-30°C ~ +55°C
Storage Temperature
-35°C ~ +55°C
Operating Humidity
≤95% Non-Condensing
Protection
IP54
Acoustic Noise
<60dB
Cooling Method
Forced Air-Cooling
Mechanical
Dimension(W x D x H)
700*1900*650mm
No. of Charging Cable
Single
Dual
Cable Length
5m or 7m
Regulation
Certificate
CE/IEC61851-1/IEC61851-23/IEC61851-21-2
