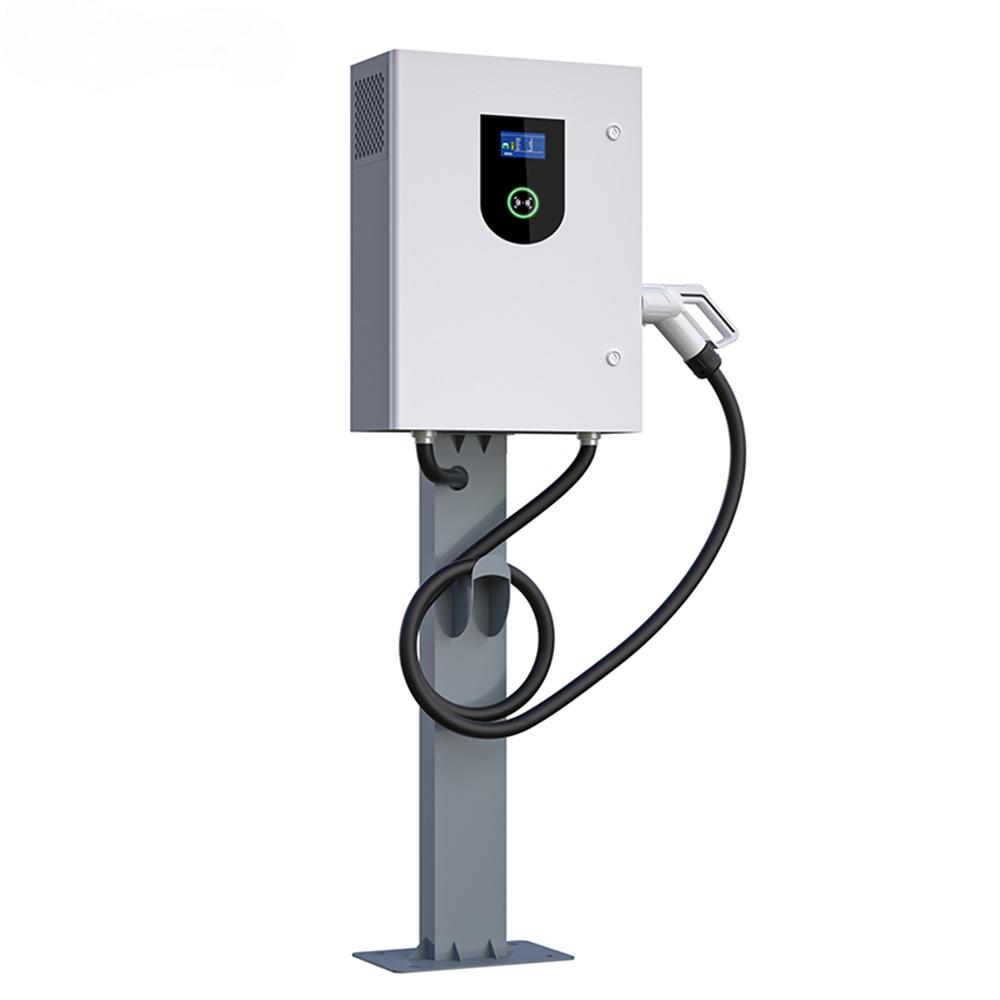

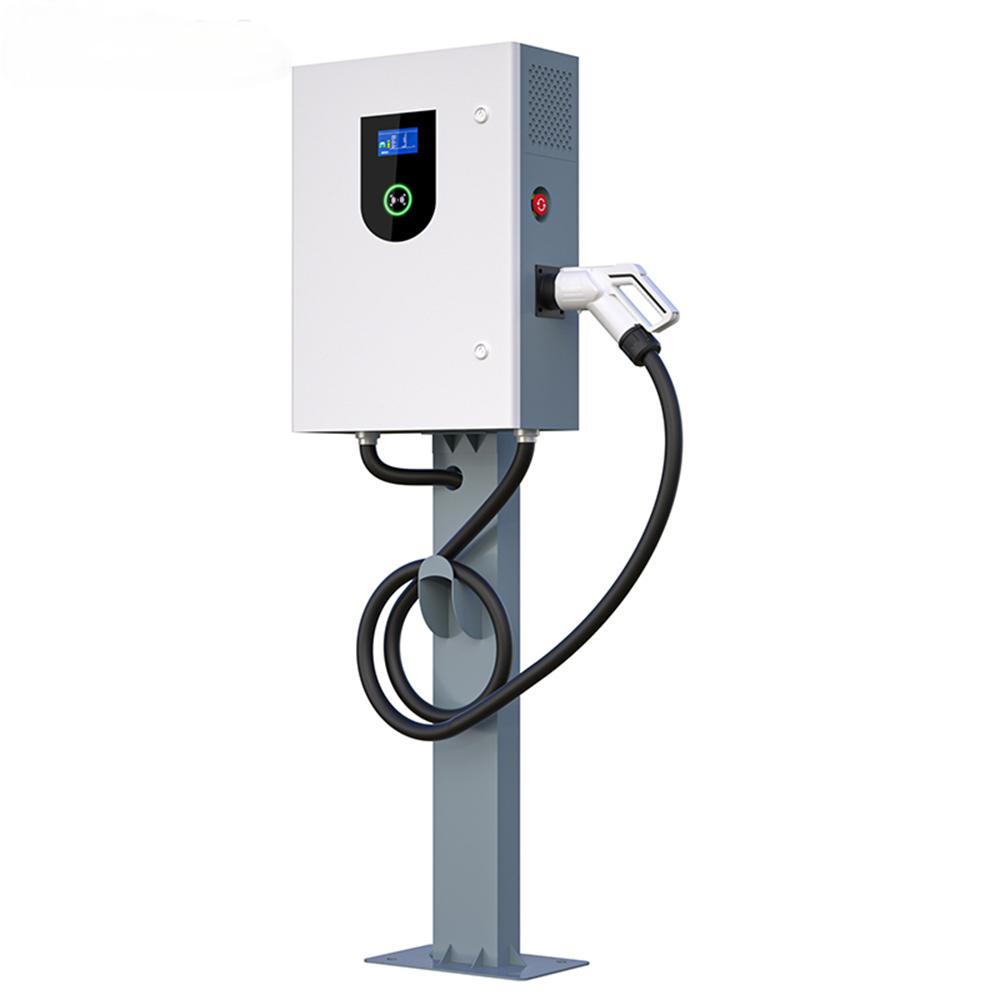

The 30KW Wall-mounted Fast Charger is a quick charger station able to charge all compatible electric vehicles.
Users only need to plug the charging connect to the vehicle and the Chager will immediately start the charging process.
Model:MIDA-WD-30KW
Rated voltage:DC 750V
Input Rating:380V±15%
Output Current :60A Efficiency:≥96%
Connector Type:CCS2，CCS1， CHAdeMO or GB/T
Certificate:CE,TUV,UL
PRODUCT INTRODUCTION:
The Multiple output of 30KW Wall-mounted Fast Charger can choose different connectors, such as CCS1, CCS2, CHAdeMO, GB/T . It can Fast-charge any CCS,CHAdeMO,GB/T vehicle. With high charging efficiency charging less than 1 hour. The charger is safe and intuitive to use with emergency stop button. Optional network integration(OCPP or proprietary protocol) for customer to choose, so it is very convenient for you to charging.
PRODUCT FEATURES:
✔ Dynamic power share(only suitable for 40KW)
✔ Stand alone or network integrated charger.
✔ Local or remote monitoring and control
✔ DC power up to 30kw.
AC Input
1. Input Rating:380Vac± 15%
2. AC Input Connection:3P+N+PE (Wye connection)
3.Max. Input Current:60A
4.Efficiency: 96%
DC Output
1. Output Voltage Range:200V-750V
2. Max.Output Power:30KW
3Max.Output Current:60A@350V,28A@750V
User Interface
1. TFT-LCD Touch Panel:4.3' touch display
2.Push Buttons:Emergency Stop
3. Communication: VPN/DNS/Cloud,WiFi,RJ45, 3/4G（GSM/CDMA),Modbus TCP,PLC
Packing
1.Dimension:645*220*450mm
2.Weight:240KGS
Environment
1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above
2. Humidity: 5% ~ 90% RH, non-condensing
3.Altitude: 2000m
4.IP Level: IP54
Regulation
1.Regulation: IEC61851-1
2.Certification:CE,ROHS,TUV,CSA,UL,IEC
3. Charging protocol: CHAdeMO 2.0/DIN 70121/OCPP 1.6(JSON or SOAP),ISO 15118
