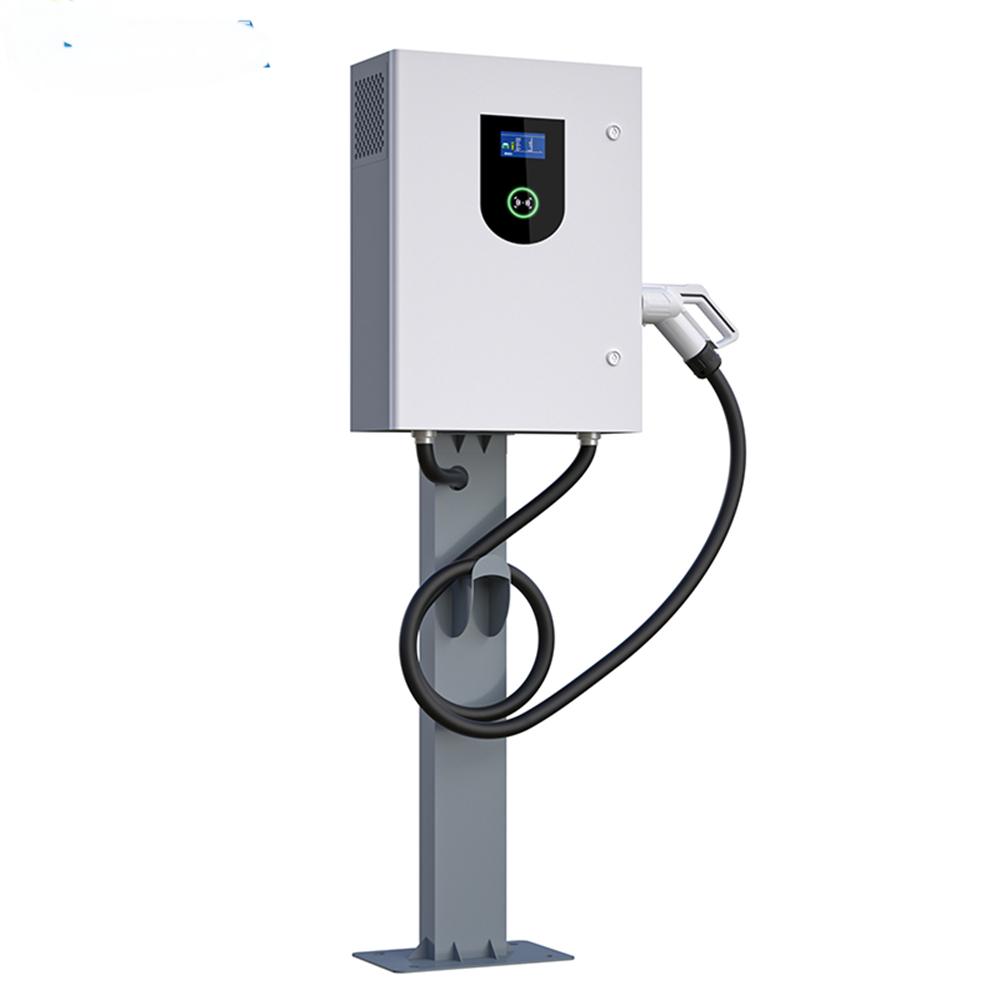

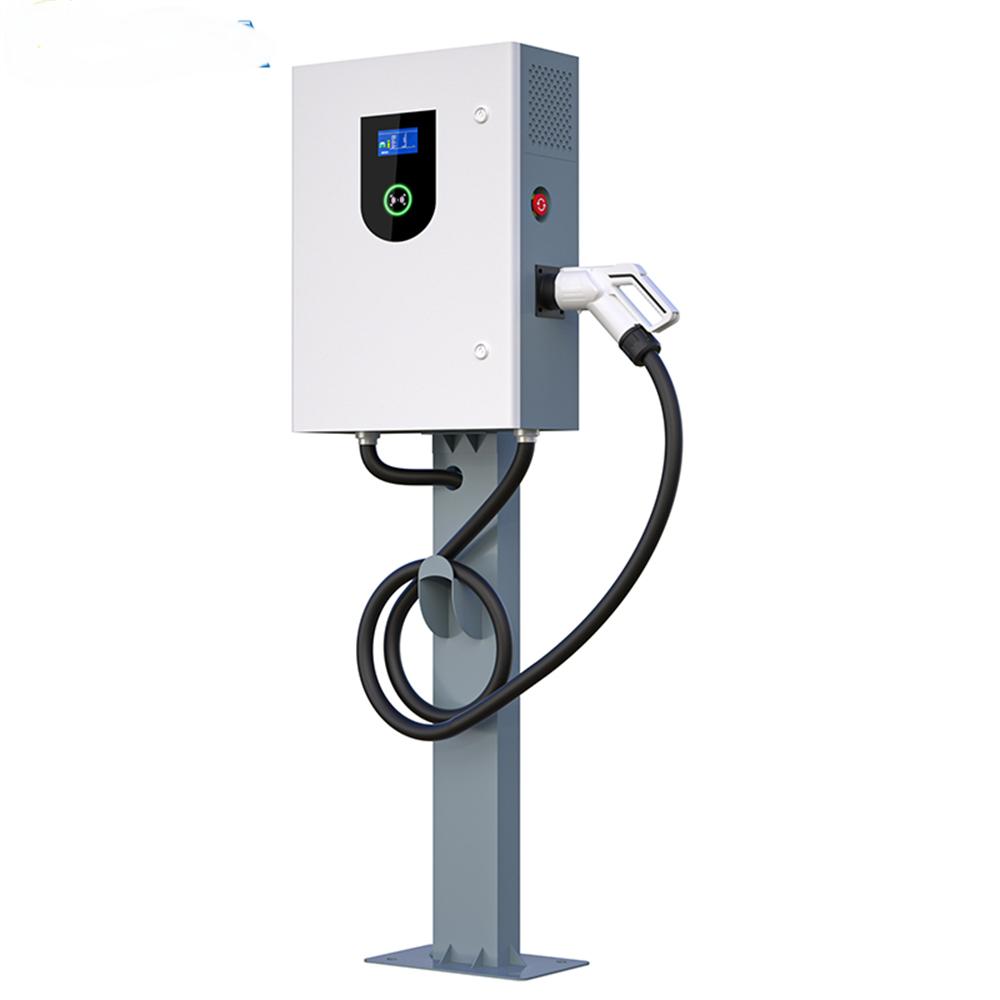

20KW wallmounted DC ev charging pile is a quick charging station able to charge all compatible electric vehicles.User only need to plug the charging connector to the vehicle and the charger will immediately start the charging process.
Model:MIDA-WD-20KW
Rated voltage:DC 750V
Input Rating:380V±15%
Output Current :60A
Efficiency:≥96% Dimension:645*220*450mm
Certificate:CE,TUV,UL
PRODUCT INTRODUCTION:
20KW wallmouned charging pile: it can adapt to the voltage of the USA/European power grid, with CHAdeMO/CCS or AC plug,only charge one plug at a time.
PRODUCT FEATURES:
✔ Dynamic power share
✔ Stand alone or network integrated charger
✔ Local or remote monitoring and control
✔ DC power up to 20KW
✔ Master /slave mode via Modbus TCP or Wifi wireless
✔ Parallel connection supported
AC Input
1. Input Rating:380Vac± 15%
2. AC Input Connection:3P+N+PE (Wye connection)
3.Max. Input Current:56A
4.Efficiency: 96%
DC Output
1. Output Voltage Range:200V-750V
2. Max.Output Power:20KW
3Max.Output Current:60A@350V,28A@750V
User Interface
1. TFT-LCD Touch Panel:4.3' touch display
2.Push Buttons:Emergency Stop
3. Communication: VPN/DNS/Cloud,WiFi,RJ45, 3/4G(GSM/CDMA),Modbus TCP,PLC
Packing
1.Dimension:1600*735*306mm
2.Weight:90KGS
Environment
1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above
2. Humidity: 5% ~ 90% RH, non-condensing
3.Altitude: 2000m
4.IP Level: IP54
Regulation
1.Regulation: IEC61851-1
2.Certification:CE,ROHS,TUV,CSA,UL,IEC
3. Charging protocol: CHAdeMO 2.0/DIN 70121/OCPP 1.6(JSON or SOAP),ISO 15118
