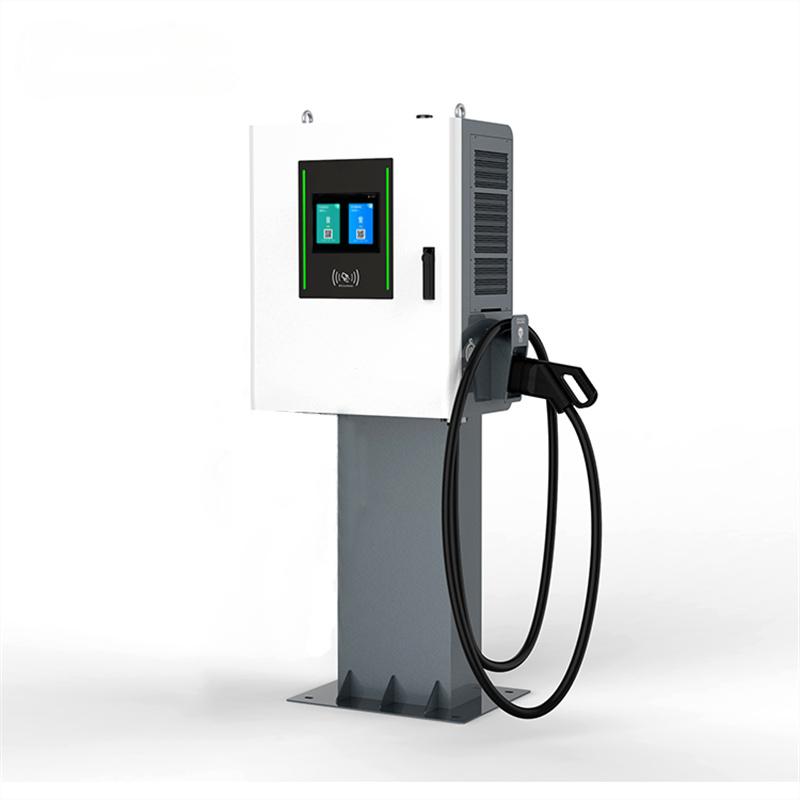

Factory DC 20KW 30KW 40KW Household wall mounted DC EV quick charger station
Rate Power:20KW 30KW 40KW 60KW
Input Voltage:400V±15%
Input Voltage Type:TN-S(Three Phase Five Wire)
AC Grid Frequency:45-65Hz
Output Voltage:150V-1000V
Output Voltage Error:≤0.5%
Output Current Error:When Output current≥30A:≤±1% When output current< 30A:≤±0.3A
Item | Power | 20KW | 40KW |
Input | Input Voltage | 3-phase 400V ±15% AC | |
Input Voltage Type | TN-S (Three Phase Five Wire) | ||
Working Frequency | 45~65Hz | ||
Power Factor | ≥0.99 | ||
Efficiency | ≥94% | ||
Output | Rated Voltage | CHAdeMO 500Vdc; CCS 750Vdc; GBT 750Vdc | |
Max. Output Current | 66A | 132A | |
Interface | Display | 8'' LCD Touchscreen | |
Language | Chinese, English, French, German, Spanish, Russian, etc. | ||

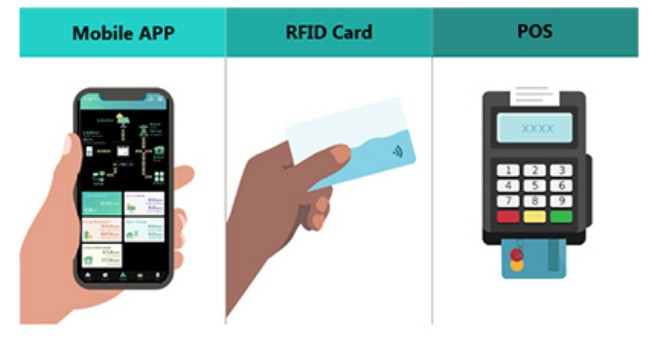

Payment | Mobile APP/RFID/POS | ||
Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
Communication Protocols | OCPP1.6J or OCPP2.0 | ||
Working Environment | Working Temperature | -30°C ~ +55°C | |
Storage Temperature | -35°C ~ +55°C | ||
Operating Humidity | ≤95% Non-Condensing | ||
Protection | IP54 | ||
Acoustic Noise | <60dB | ||
Cooling Method | Forced Air-Cooling | ||
Mechanical | Dimension(W x D x H) | 690mm*584mm*1686mm (±20mm) | |
No. of Charging Cable | Single | Dual | |
Cable Length | 5m or 7m | ||
Regulation | Certificate | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 |
