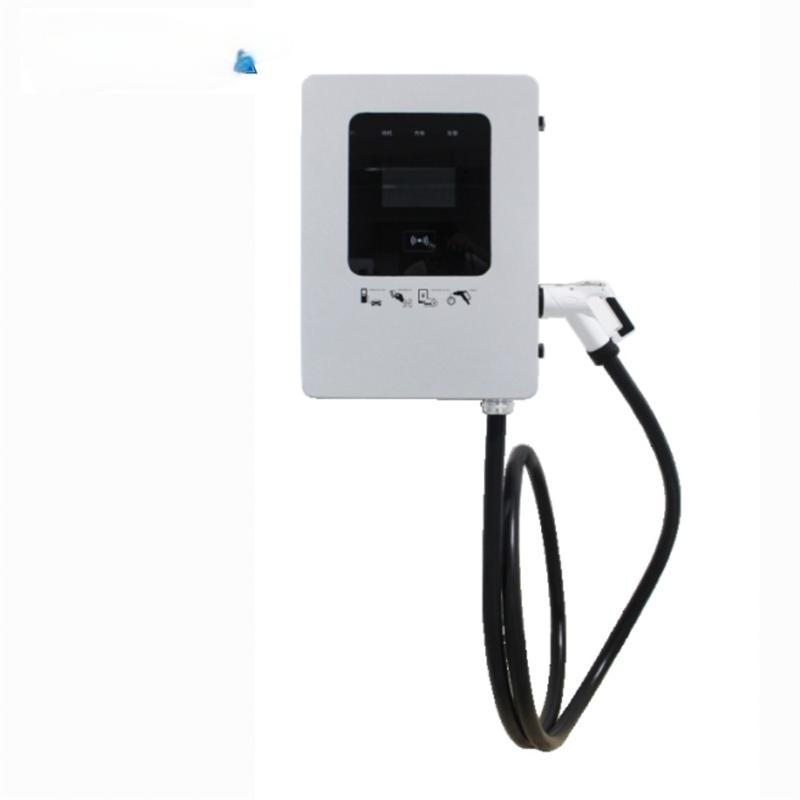

GBT Chademo CCS2 CCS1 Wall mount charger Pillar Dc Charger 20kw 30kw 40kw Commercial Ev Charging Station
Rate Power:20KW 30KW 40KW 60KW
Input Voltage:400V±15%
Input Voltage Type:TN-S(Three Phase Five Wire)
AC Grid Frequency:45-65Hz
Output Voltage:150V-1000V
Output Voltage Error:≤0.5％
Output Current Error:When Output current≥30A:≤±1％ When output current＜ 30A:≤±0.3A
Power Factor:≥0.99 Leakage current:≤10mA
| Item | Power | 20KW | 40KW |
| Input | Input Voltage |
DC260V-900V/34A
|
|
| Output Voltage Type |
DC150-750V/0-50A
|
||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | CHAdeMO 500Vdc; CCS 750Vdc; GBT 750Vdc | |
| Max. Output Current | 66A | 132A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||

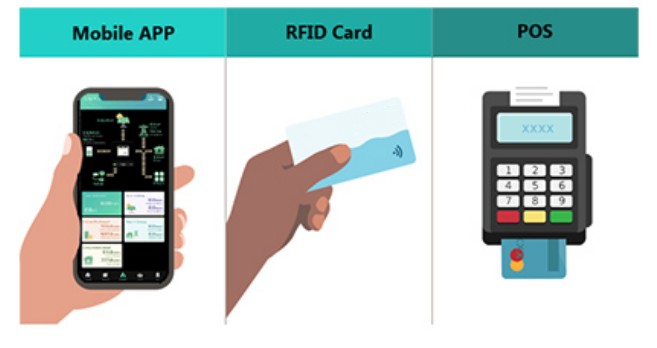

| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) |
500*260*700

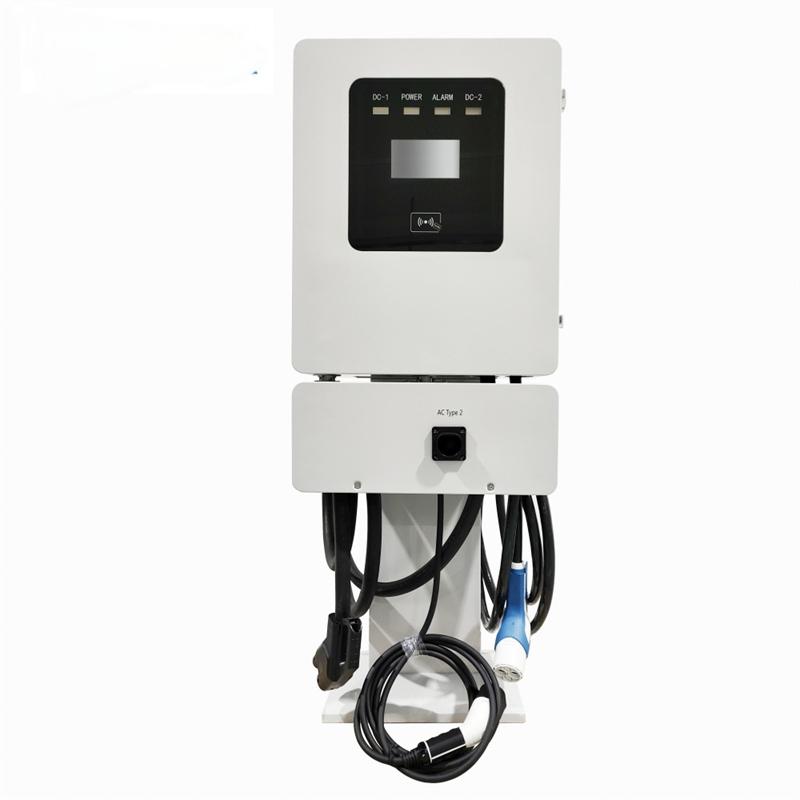

Floor Mounted:500*365*1600
mm (±20mm) |
|
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |
