● Compatible with the existing 200V-800V platform and provides full power charging for future development above 900V which is able to avoid investment on high voltage EV charger upgrade construction.

● Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.

● Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.

INTELLIGENT CONTROL FOR SAFE AND
RELIABLE CHARGING MODULE

Specifications

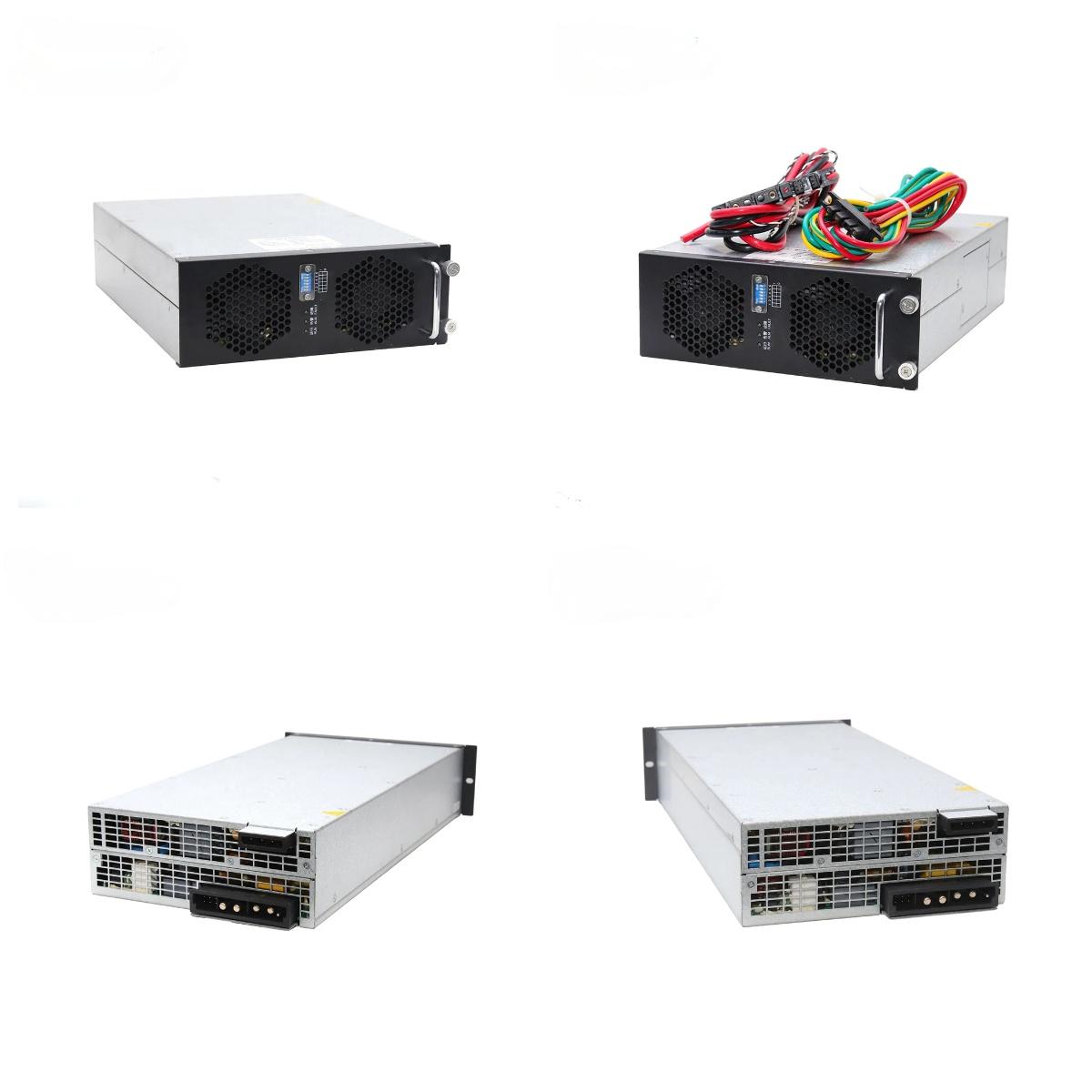

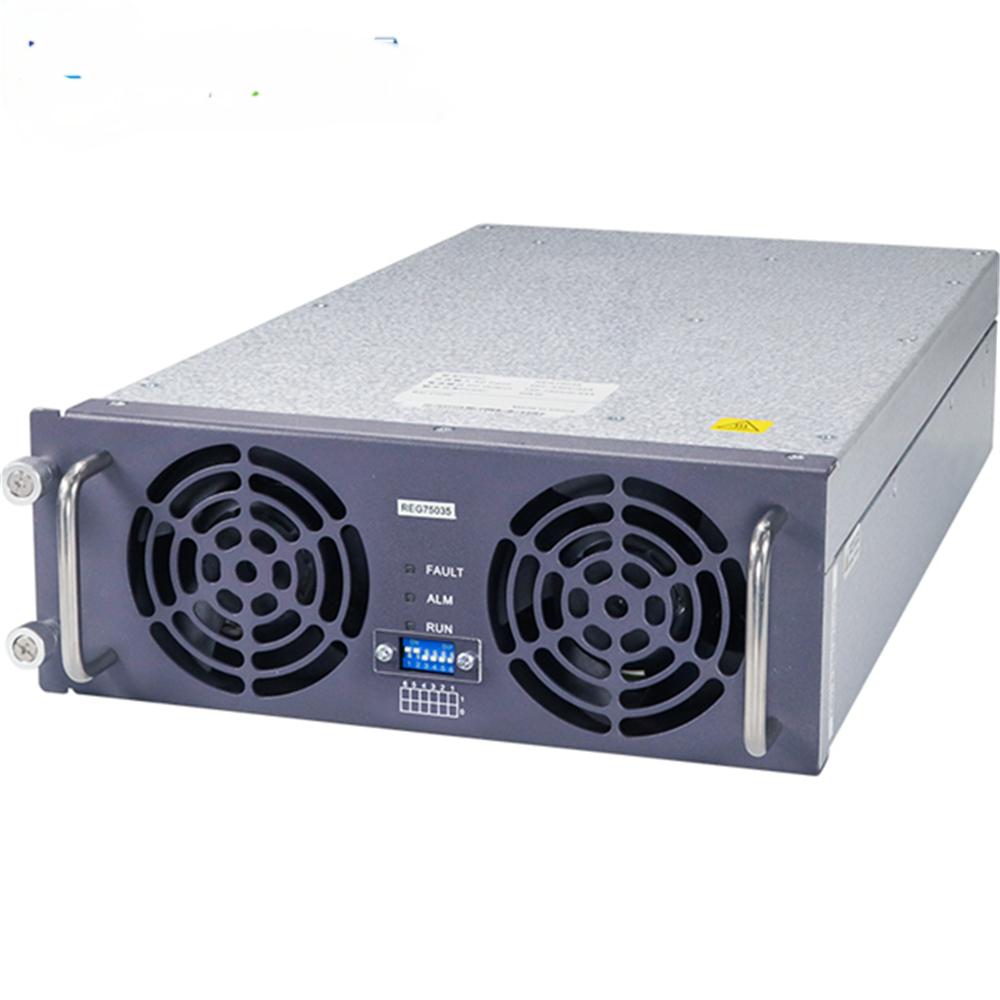

20KW DC Charging Module (Two-input)
Model No.		BEG1K075G
AC Input	Input Rating	285Vac ～ 475Vac,three phase + Protective Earth
	AC Input Connection	3L + PE
	Input Frequency	50/60±5Hz
	Input Power Factor	≥0.99
	Input Overvoltage Protection	490±10Vac
	Input Undervoltage Protection	270±10Vac
DC Output	Rated Output Power	20kW
	Output Voltage Range	300Vdc ~ 850Vdc
	Output Current Range	0.5-67A
	Output Constant Power Range	When output voltage is 300-1000Vdc, constant 20kW will output
	Peak Efficiency	≥ 96%
	Soft Start Time	3-8s
	Short Circuit Protection	Self-rollback protection
	Voltage Regulation Accuracy	≤±0.5%
	THD	≤5%
	Current Regulation Accuracy	≤±1%
	Current Sharing Imbalance	≤±5%
Operation Environment	Operating Temperature (°C)	-40˚C ~ +75˚C, derating from 55˚C
	Humidity (%)	≤95% RH, non-condensing
	Altitude (m)	≤2000m, derating above 2000m
	Cooling method	Fan cooling
Mechanical	Standby Power Consumption	<10W
	Communication Protocol	CAN
	Address Setting	Digital screen display, keys operation
	Module Dimension	460*218*84mm (L*W*H)
	Weight (kg)	≤ 13Kg
Protection	Input Protection	OVP, OCP, OPP, OTP, UVP, Surge protection
	Output Protection	SCP, OVP, OCP, OTP, UVP
	Electrical Insulation	Insulated DC output and AC input
	MTBF	500 000 hours
Regulation	Certificate	UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
	Safety	CE, TUV

Core features

The BEG1K075G DC DC charger module is the inner power module for DC charging stations (piles), and convert AC and DC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as  150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

The 20kW DC DC Bidirectional charger module BEG1K075G is equipped with a POST (power on self-test) function, AC or DC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

Advantages

  Multiple Options

High power as UXC75030B 20kW Bidirectional Charging Module
Output voltage up to 1000V

High Reliability

• Overall temperature monitoring
• Defenses of moisture, salt spray and fungus
• MTBF > 100,000 hours

Secure and Safe

Wide input voltage range 270~480V AC
Wide working temperature range -30°C~+50°C

Low Energy Consumption

Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency

Applications

1,The 20kw DC DC charger modules BEG1K075G can be used on DC fast charging stations for EVs and E-buses.

2,the BEG1K075G 20kw DC DC charger module is equipped with input overvoltage protection, undervoltage alarming, output overcurrent and short circuit protection functions. The charger modules can be connected in a parallel system, allowing for a hot swapping and easier maintenance. This also ensures the system applicability and reliability.
3,The Bidirectional charger module BEG1K075G is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

4,The BEG1K075G charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

5,1000V 20kW DC DC EV Charger Power Module BEG1K075G for 150kW EV Fast Charger Station.20kw charging module 1000v emc class b rectifier ev charger power module
