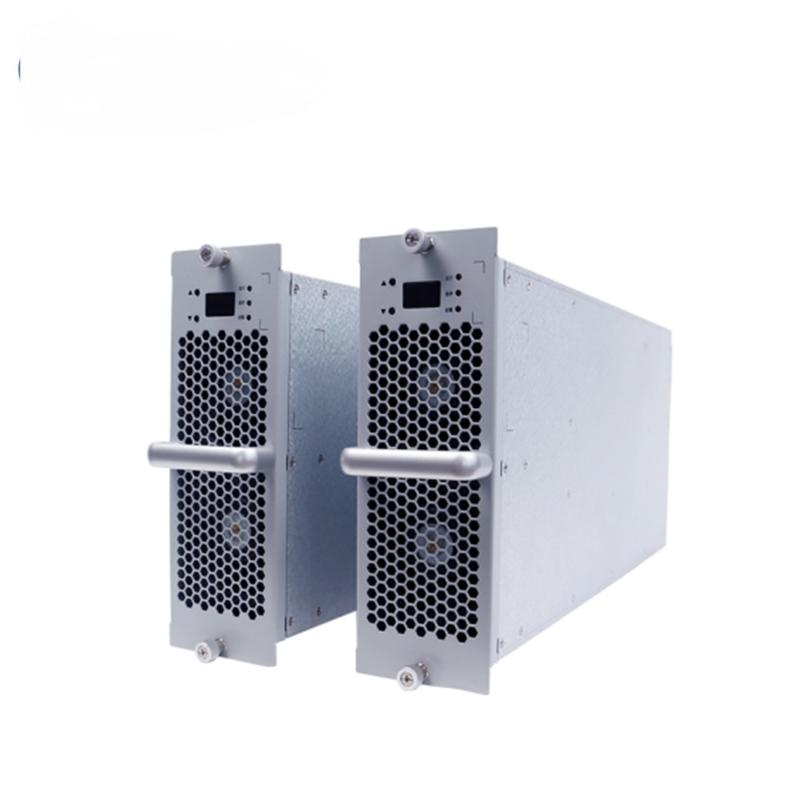

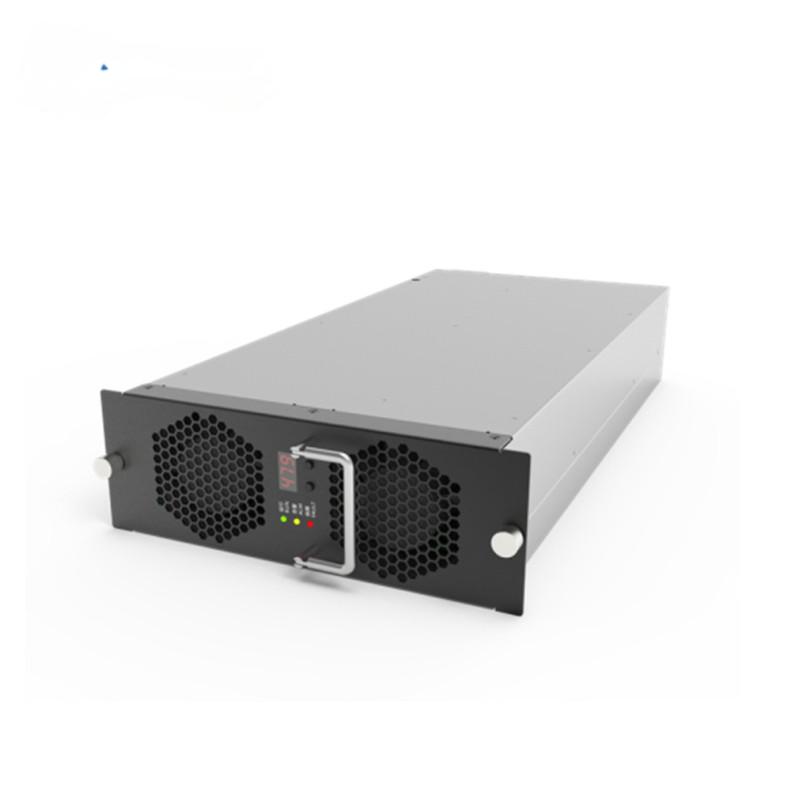

Electric Vehicle Car Charging Station EV Charger module 20kw 30kw 40KW 20kW EV Charging Module 1000V DC MPPT Power Converter for DC Charger Station
Model No.:MD100020FEU
Input Voltage:Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac
Rated Output Power:20kW
Output Voltage Range:50-1000VDC
Peak Efficiency:≥ 96%
Power Factor:≥0.99
Current Regulation Accuracy:≤±1%
Communication Protocol:CAN
The Module is isolated design, supporting hot plug, with output reverse irrigation isolation, to ensure personal safety and the safety of the EV Charger system.
● Compatible with the existing 200V-800V platform and provides full power charging for future development above 900V which is able to avoid investment on high voltage EV charger upgrade construction.
● Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.
● Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.
| 20KW DC Charging Module | ||
| Model No. | MD100020FEU | |
| AC Input | Input Rating | Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac |
| AC Input Connection | 3L + PE | |
| Input Frequency | 50±5Hz | |
| Input Power Factor | ≥0.99 | |
| Input Overvoltage Protection | 490±10Vac | |
| Input Undervoltage Protection | 270±10Vac | |
| DC Output | Rated Output Power | 20kW, 30kW, 40kW |
| Output Voltage Range | 50-1000Vdc | |
| Output Current Range | 0.5-67A | |
| Output Constant Power Range | When output voltage is 300-1000Vdc, constant 20kW will output | |
| Peak Efficiency | ≥ 96% | |
| Soft Start Time | 3-8s | |
| Short Circuit Protection | Self-rollback protection | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| THD | ≤5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing Imbalance | ≤±5% | |
|
Operation Environment |
Operating Temperature (°C) | -40˚C ~ +75˚C, derating from 55˚C |
| Humidity (%) | ≤95% RH, non-condensing | |
| Altitude (m) | ≤2000m, derating above 2000m | |
| Cooling method | Fan cooling | |
| Mechanical | Standby Power Consumption | <10W |
| Communication Protocol | CAN | |
| Address Setting | Digital screen display, keys operation | |
| Module Dimension | 460*218*84mm (L*W*H) | |
| Weight (kg) | ≤ 13Kg | |
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Surge protection |
| Output Protection | SCP, OVP, OCP, OTP, UVP | |
| Electrical Insulation | Insulated DC output and AC input | |
| MTBF | 500 000 hours | |
| Regulation | Certificate | UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B |
| Safety | CE, TUV | |

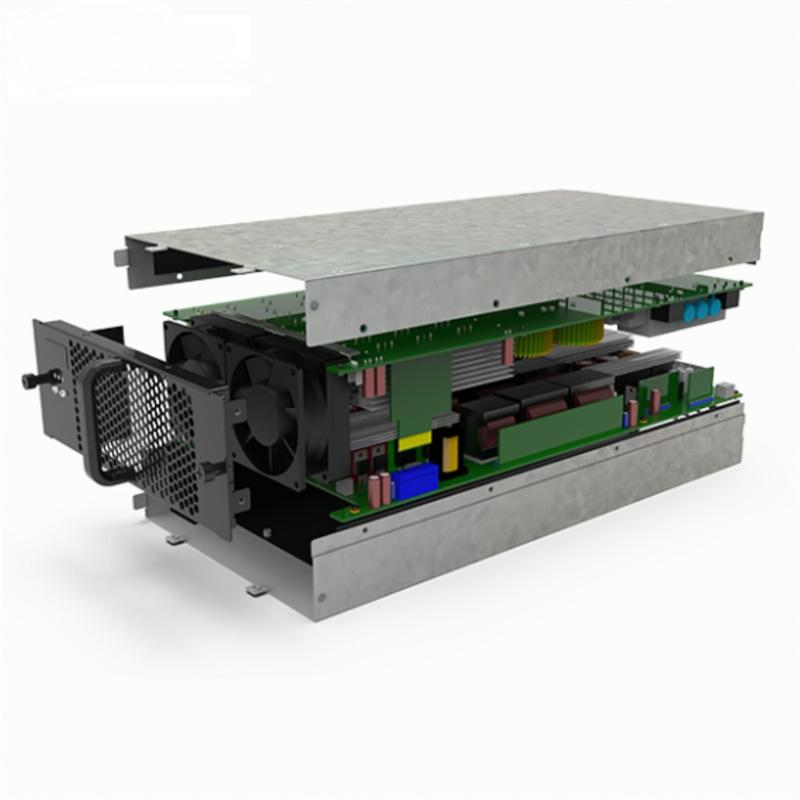

The charger module is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.
The charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.
Multiple Options
High power as 20kW
Output voltage up to 1000V
High Reliability
Secure and Safe
Wide input voltage range 270~480V AC
Wide working temperature range -30°C~+50°C
Low Energy Consumption
Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency
The charger modules can be used on DC fast charging stations for EVs and E-buses.
Note: The charger module does not apply to on-board chargers (inside cars) .
