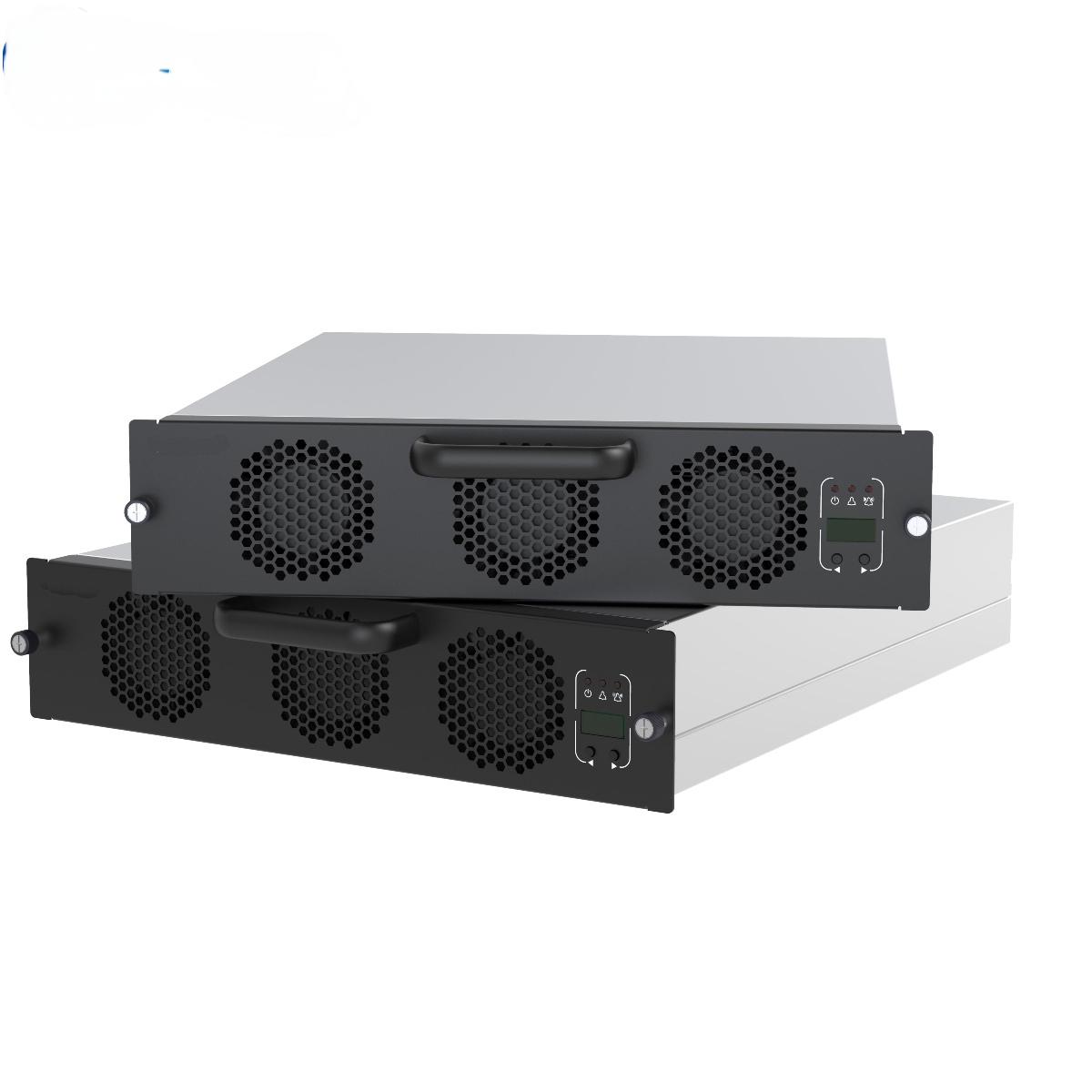

SER100040K3B 40kW DC Charging Module for DC EV Charging Station AC DC Power Module
Model No.:SER100040K3B
Input Voltage:285Vac ~ 475Vac
Rated Output Power:40kW
Output Voltage Range:50Vdc ~ 1000Vdc
Peak Efficiency:≥ 97.03%
Power Factor:≥0.99
Current Regulation Accuracy:≤±1%
Communication Protocol:CAN
The SER100040K3B 40kW Power Module is isolated design, supporting hot plug, with output reverse irrigation isolation, to ensure personal safety and the safety of the EV Charger system.
● EV charging(charger) station 40kw SER100040K3B power module integrated circuits and reference designs.our integrated circuits and reference designs help you create smarter and more efficient power modules that can charge electric vehicles (evs). Whether it is a power factor correction (pfc) stage or a dc/dc power stage design, we have the right circuits to design an efficient ev power module.
● MIDA SER100040K3B EV Charging Module Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.
● MIDA ESER100040K3B Power Module Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.
40KW DC Charging Module | ||
Model No. | SER100040K3B | |
AC Input | Input Rating | 285Vac ~ 475Vac |
AC Input Connection | 3L + PE | |
Input Frequency | 50±5Hz | |
Input Power Factor | ≥0.99 | |
Input Overvoltage Protection | 490±10Vac | |
Input Undervoltage Protection | 270±10Vac | |
DC Output | Rated Output Power | 40kW |
Output Voltage Range | 50Vdc ~ 1000Vdc | |
Output Current Range | 0.5-67A | |
Output Constant Power Range | When output voltage is 50-1000Vdc, constant 20kW will output | |
Peak Efficiency | ≥ 96% | |
Soft Start Time | 3-8s | |
Short Circuit Protection | Self-rollback protection | |
Voltage Regulation Accuracy | ≤±0.5% | |
THD | ≤5% | |
Current Regulation Accuracy | ≤±1% | |
Current Sharing Imbalance | ≤±5% | |
Operation Environment |
Operating Temperature (°C) | -40˚C ~ +75˚C, derating from 55˚C |
Humidity (%) | ≤95% RH, non-condensing | |
Altitude (m) | ≤2000m, derating above 2000m | |
Cooling method | Fan cooling | |
Mechanical | Standby Power Consumption | <10W |
Communication Protocol | CAN | |
Address Setting | Digital screen display, keys operation | |
Module Dimension | 460*218*84mm (L*W*H) | |
Weight (kg) | ≤ 13Kg | |
Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Surge protection |
Output Protection | SCP, OVP, OCP, OTP, UVP | |
Electrical Insulation | Insulated DC output and AC input | |
MTBF | 500 000 hours | |
Regulation | Certificate | UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B |
Safety | CE, TUV |
1,The 40KW charger module SER100040K3B is the inner power module for SER100040K3B DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.
2,The 40kw SER100040K3B ev charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.
3,MIDA EV Charger Module SER100040K3B Flexible, reliable, low-cost power module for ev charging(charger) station. MD series ac/dc charging module is key power part of dc ev fast charger, which converts ac to dc and then charge electric vehicles, providing reliable dc supply for equipment requires dc ev power module.
Multiple Options
High power as 20kW,30kW ,40kW SER100040K3B Power Module
Output voltage up to 1000V
High Reliability
Secure and Safe
Wide input voltage range 270~480V AC
Wide working temperature range -30°C~+50°C
Low Energy Consumption
Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency
1,the charger modules can be used on DC fast charging stations for EVs and E-buses.
Note: The charger module does not apply to on-board chargers (inside cars) .
2,the SER100040K3B charger module is equipped with input overvoltage protection, undervoltage alarming, output overcurrent and short circuit protection functions. The charger modules can be connected in a parallel system, allowing for a hot swapping and easier maintenance. This also ensures the system applicability and reliability.
3,The 40KW DC charger module SER100040K3B is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.
4,The SER100040K3B 40kw charging module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.
