DCDC Power Modules. either bidirectional or unidirectional conversion, can be widely applied in DC Charger, energy storagedecommissioned battery recycling. and other scenarios. Infypower-designed modules adopt high frequency transformer insideand an intemal patented residual current discharge circuit, offering excellent performance and high-power density for integratedsystem.

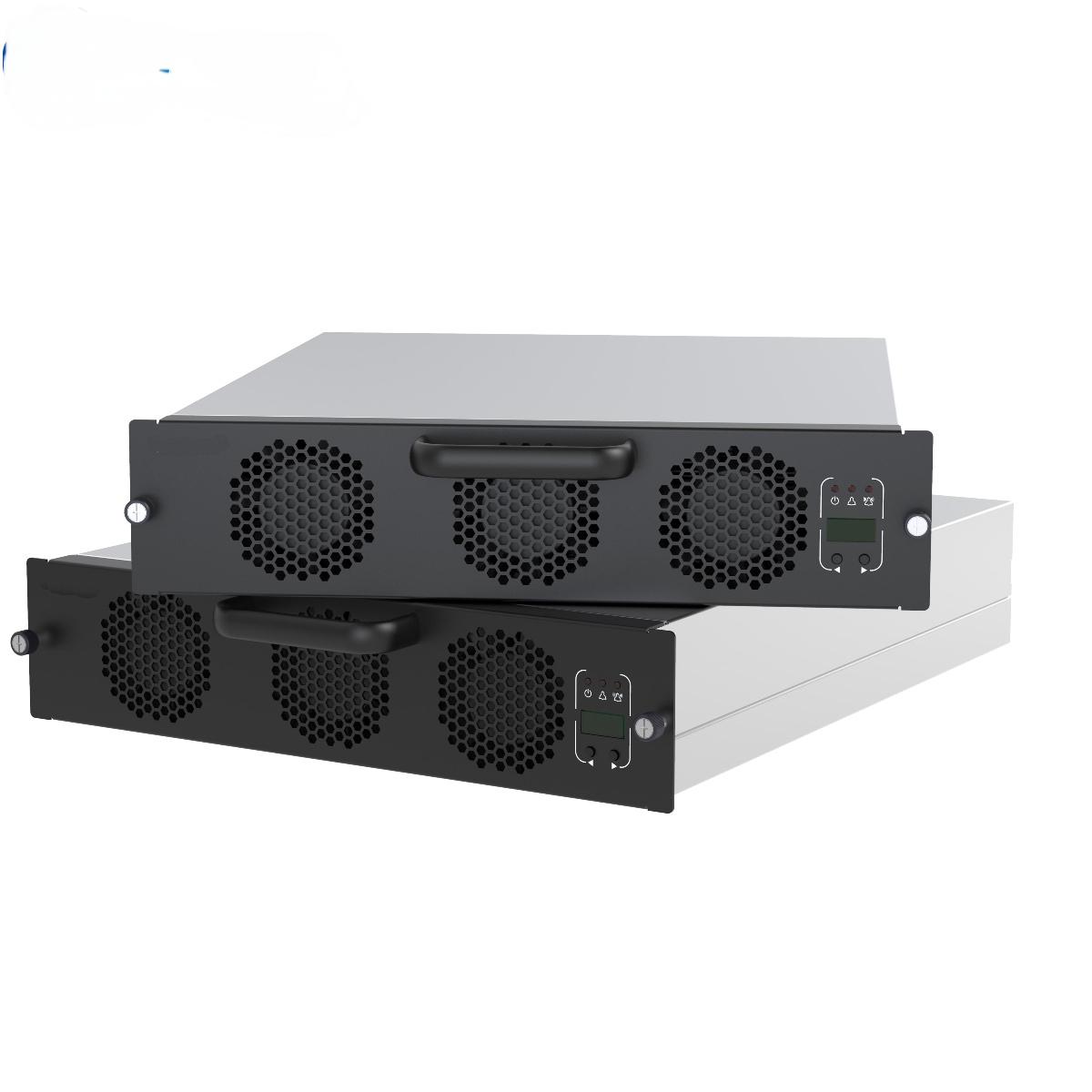

Model No.:BEC75025
Battery-side voltage and current:300vdc ~ 860vdc,0-25A DC
Bus-side Voltage range:300vdc~ 750vdc,0-25A
lnput and Output power:15kw@ voltage > 600VDC
Dimensions:84mm (H) x226mm (W) x395mm (D)
DCDC Power Modules. either bidirectional or unidirectional conversion, can be widely applied in DC Charger, energy storagedecommissioned battery recycling. and other scenarios. Infypower-designed modules adopt high frequency transformer insideand an intemal patented residual current discharge circuit, offering excellent performance and high-power density for integratedsystem.
● Compatible with the existing 200V-800V platform and provides full power charging for future development above 900V which is able to avoid investment on high voltage EV charger upgrade construction.
● Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.
● Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.
The charger module is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.
The charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.
Multiple Options
High power as 30kW
High Reliability
Overall temperature monitoring
Secure and Safe
Wide input voltage range 270~480V AC
Low Energy Consumption
Unique sleep mode, less than 2W power
The charger modules can be used on DC fast charging stations for EVs and E-buses.
ULTRA WIDE OUTPUT VOLTAGE RANGE
COMPATIBLE WITH EVERY EV BATTERY CAPACITY REQUIREMENTS
50-1000V ultra wide output range, meeting car types in the marketand adapt to high voltage EVs in future.
INTELLIGENT CONTROL FOR SAFE AND
RELIABLE CHARGING
Specifications
15KW Bidirectional DC Power Supply
Model No.
BEC75025
AC Input
Input Rating
Rated voltage 380Vac, three phases (no center line), operating range 270-490Vac
AC Input Connection
3L + PE
Input Frequency
50±5Hz
Input Power Factor
≥0.99
Input Overvoltage Protection
490±10Vac
Input Undervoltage Protection
270±10Vac
DC Output
Rated Output Power
30kW
Output Voltage Range
150-1000Vdc
Output Current Range
0-73.3A
Output Constant Power Range
When output voltage is 250-1000Vdc, constant 30kW will output
Peak Efficiency
≥ 96%
Soft Start Time
3-8s
Short Circuit Protection
Self-rollback protection
Voltage Regulation Accuracy
≤±0.5%
THD
≤5%
Current Regulation Accuracy
≤±1%
Current Sharing Imbalance
≤±5%
Operation
Environment
Operating Temperature (°C)
-30˚C ~ +75˚C, derating from 55˚C
Humidity (%)
≤95% RH, non-condensing
Altitude (m)
≤2000m, derating above 2000m
Cooling method
Fan cooling
Mechanical
Standby Power Consumption
<10W
Communication Protocol
CAN
Address Setting
Digital screen display, keys operation
Module Dimension
395*300*84mm (L*W*H)
Weight (kg)
≤ 17Kg
Protection
Input Protection
OVP, OCP, OPP, OTP, UVP, Surge protection
Output Protection
SCP, OVP, OCP, OTP, UVP
Electrical Insulation
Insulated DC output and AC input
MTBF
500 000 hours
Regulation
Certificate
UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
Safety
CE, TUV
Core features
Advantages
Output voltage up to 1000V
Defenses of moisture, salt spray and fungus
MTBF > 100,000 hours
Wide working temperature range -30°C~+50°C
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency
Applications
Note: The charger module does not apply to on-board chargers (inside cars) .
