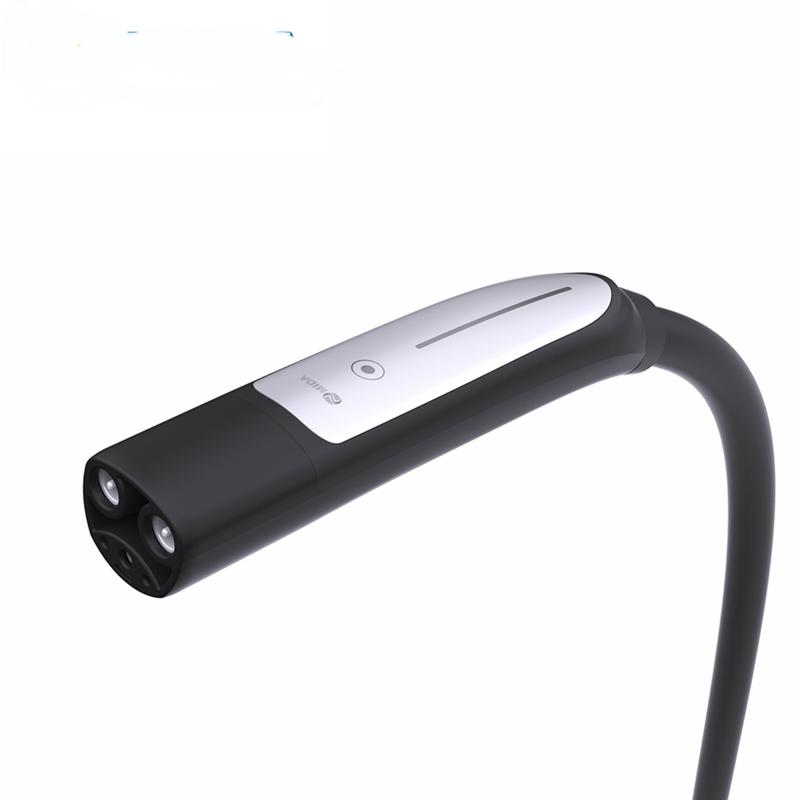

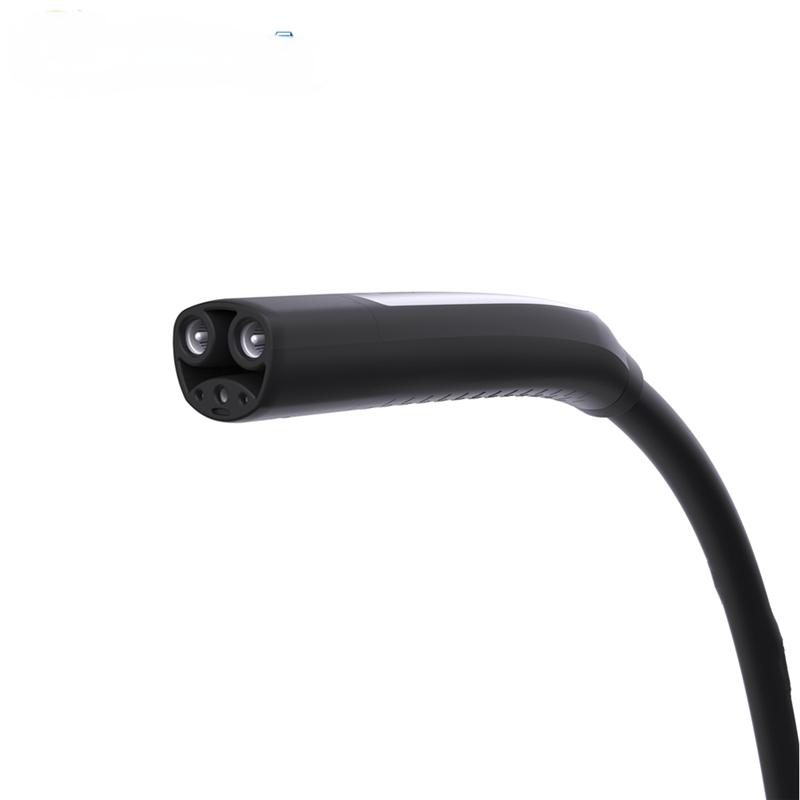

The North American Charging Standard (NACS), currently being standardized as SAE J3400 and also known as the Tesla charging standard, 16A 32A 40A 48A Tesla NACS Plug EV Connector
Rated voltage:AC120/240V
Rated Current:16A/32A 40A/48A
Therminal temperature rise:<45K
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE TUV ULApproved
Protection Degree:IP55
PRODUCT CHARACTERISTIC:
Specfications:
☆ Conform to the provisions and requirements of IEC62196-2 2016 2-llb, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
Item
Tesla Plug with EV Cable
Product Model
MD-TSA-40A , MD-TSA-48A
Rated Current
40A / 48A
Operation Voltage
AC 120V / AC 240V
Insulation Resistance
＞1000MΩ（DC 500V）
Withstand Voltage
2000V
Pin Material
Copper Alloy, Silver Plating
Shell Material
Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life
No-Load Plug In / Pull Out ＞10000 Times
Contact Resistance
0.5mΩ Max
Terminal Rise
＜50K
Operating Temperature
-30°C~+50°C
Impact Insertion Force
>300N
Waterproof Degree
IP55
Cable Color
Black ,Orange, Green, Blue etc.
Cable Length
(5Meter ,10Meter) The length of the cable can be customized
Cable Protection
Reliability of materials,antiflaming,pressure-resistant, abrasion resistance
impact resistance and high oil
Certification
UL,TUV,CE Approved
☆ Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
☆ XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
☆ Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
☆ Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
☆ Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier.
China comprehensive new energy solutions provider, products line include: EV connectors, EV charger sockets, portable EV chargers, CCS2 connectors, Tesla Nacs plug, DC Fast charger and EV Accessories .OEM/ODM production services.
