400A Tesla NACS Charging Solutions for Electric Vehicles ,Tesla’s NACS charge port and the company’s extensive network of Superchargers are largely considered the gold standard, and it appears other automakers are ready to make Tesla’s system the industry standard. In May 2023, Ford was the first to agree to team up with Tesla and adopt the 400A NACS plug; then the dominos started falling, with several other automakers recently announcing agreements with 400A Tesla NACS connector.
Model:MD-TSA-EV400P
Rated voltage:240V AC/1000V DC
Rate Current:250A, 350A,400A
Rated Drop Resistance::100 drops
Insertion / Withdrawal Force: :< 90N
Protection Degree:IP67 Waterproof
UV Resistance::F1 per UL 746C
Working temperature:-40°C ~+50°C
Standard:North American Charging Standard
PRODUCT INTRODUCTION:

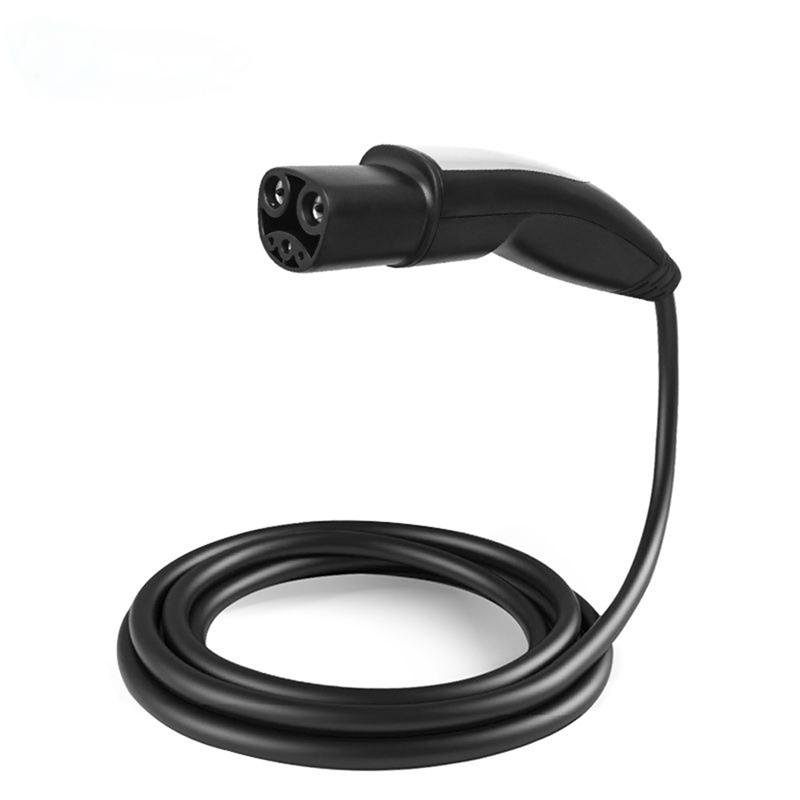

400A NACS Charging Cable is Tesla’s previously proprietary direct current (DC) fast charging connector standard—formerly known simply as the “Tesla charging connector.” It has been used with Tesla cars since 2012 and the connector design became available to other manufacturers in 2022. It was designed for Tesla’s 400-volt battery architecture and is much smaller than other DC fast charging connectors. The 400A NACS connector is used with Tesla superchargers, which currently charge at a rate of up to 400kW.

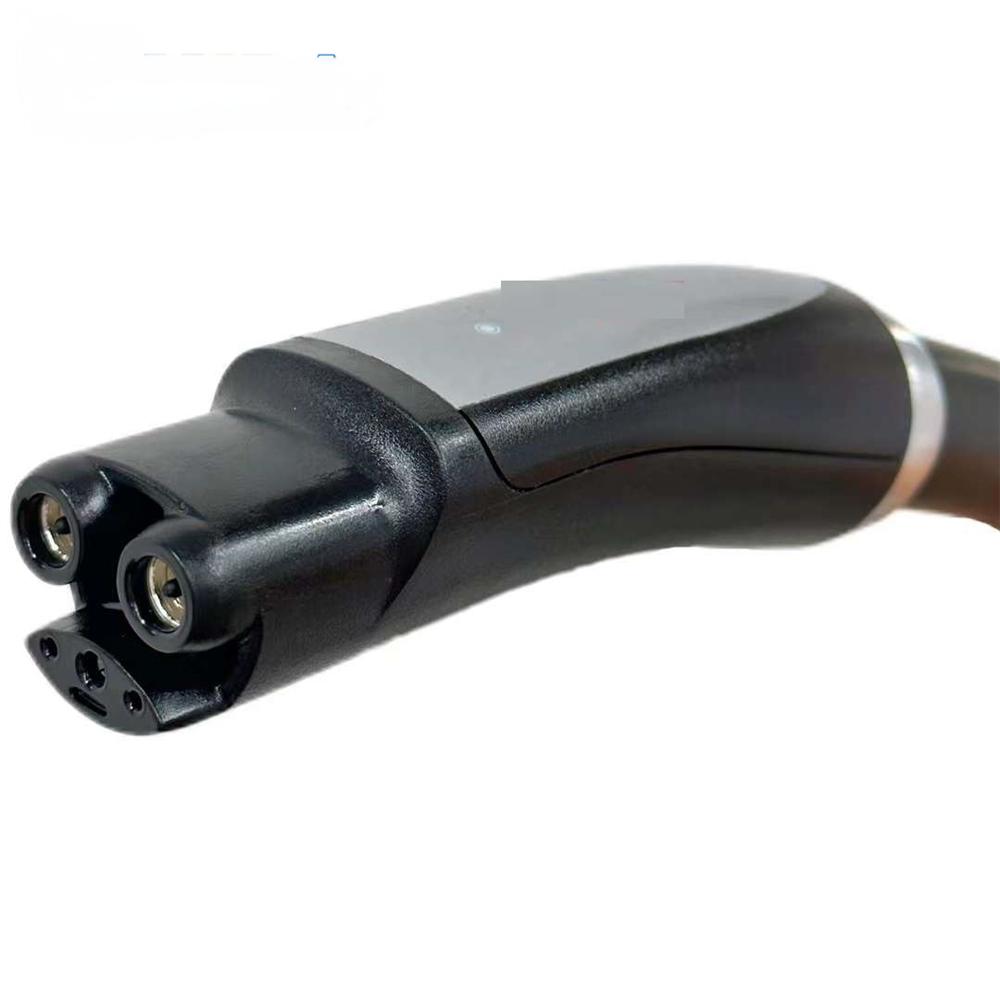

1.The 400A NACS connector has a single button located on the top center of the handle. When the button is depressed, a UHF signal is emitted. When the connector is locked in place, the signal commands the vehicle to retract the latch holding the connector in place. When the connector is not locked in place, the signal commands the nearby vehicle to open the door covering the inlet.
2,If charge point operators want to offer charging for new Ford and GM EVs, they’ll need to convert some of their CCS1 charger connectors to 400 NACS Plug. DC fast chargers like Tritium’s PKM150 will be able to accommodate 400A NACS connectors in the near future.
3,Tesla Gun 400A Tesla NACS Connector,400A Tesla NACS Plug for Tesla Supercharger station.
Features
1. Meet NACS standard
2. Concise appearance, support back installation
3. Protection Degree: IP67
4.Max charging power: 400kW
Mechanical Properties
1. Mechanical life: no-load plug in/pull out>10000 times
2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance
1. DC input: 400A 1000V DC MAX
3. Insulation resistance: >2000MΩ(DC1000V)
4. Terminal temperature rise: <50K
5. Insertion / Withdrawal Force: < 90N
6. UV Resistance: F1 per UL 746C
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin: Copper alloy,silver +thermoplastic on the top
Environmental Performance
1. Operating temperature: -40°C~+50°C
