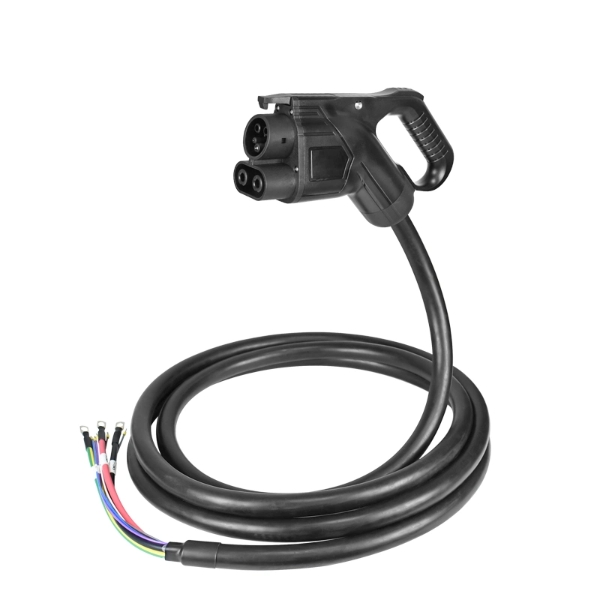

This open-end CCS1 replacement Level 3 cable is to be integrated into the charging station. The cable is 80/125/150/200/250 amperes and can charge your EV up to 250 kW. The product has a nice appearance, a hand-held ergonomic design, and is easy to plug. The working length is 20 feet and made from thermoplastic material. It has a protection level of IP65 and is anti-flaming, pressure-resistant, abrasion-resistant, and impact resistan.
Model:MIDA-CCS1-EV80P,MIDA-CCS1-EV125P
Rated voltage:DC 1000V
Rated Current:80A125A
Therminal temperature rise:<50K
Protection Degree:IP55
Waterproof Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Standard:IEC 62196-3
Certificate:CE,TUV,UL Approved
PRODUCT INTRODUCTION:
1,CCS1 EV plug are available in 80A to 250A. It’s used in DC fast charging & comply with IEC 62196-3.
2,Combined Charging System (CCS1) is based on open and universal standards for electric vehicles. Our CCS1 plug is used for direct-current charging at a maximum of 250 kW. Universally compatible, high-quality CCS1 Gun EV plugs designed for 10000+ charging cycles.
3,CCS1 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS1 Gun designed for 10000+ charging cycles. CCS1 Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. 80A CCS1 Gun ,125A CCS1 Plug ,200A CCS1 Plug,250A CCS1 Connector.
1,CCS1 Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2,CCS1 Gun design for use in Combined Charging System applications UtiliSes proprietary silver-plated contacts for long-life durability CCS1 supporting AC & DC Charging standards of North America, Asia ,Australia and increasingly global standards.
3,CCS1 DC Gun 80A CCS1 Connector,125A CCS1 Plug ,200A CCS1 EV plug,250A CCS1 Charger connector.
4, 250A CCS1 Gun Terminal Quick-Change DC High Power EV Charging CCS1 UL Rated Connector With UL EV Cable.
Features
1. Meet IEC 62196-3 standard
2. Concise appearance, support back installation
3. Back Protection class IP65
4.Max charging power: 80kW,125KW
Mechanical Properties
1. Mechanical life: no-load plug in/pull out>10000 times
2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance
1. DC input: 80A/125A 1000V DC MAX
3. Insulation resistance: >2000MΩ(DC1000V)
4. Terminal temperature rise: <50K
5. Withstand Voltage: 3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin: Copper alloy,silver +thermoplastic on the top
Environmental Performance
1. Operating temperature: -30°C~+50°C
