Russia 250A 300A CCS 2 Charging ,Connector MIDA CCS2 Plug-china supplier

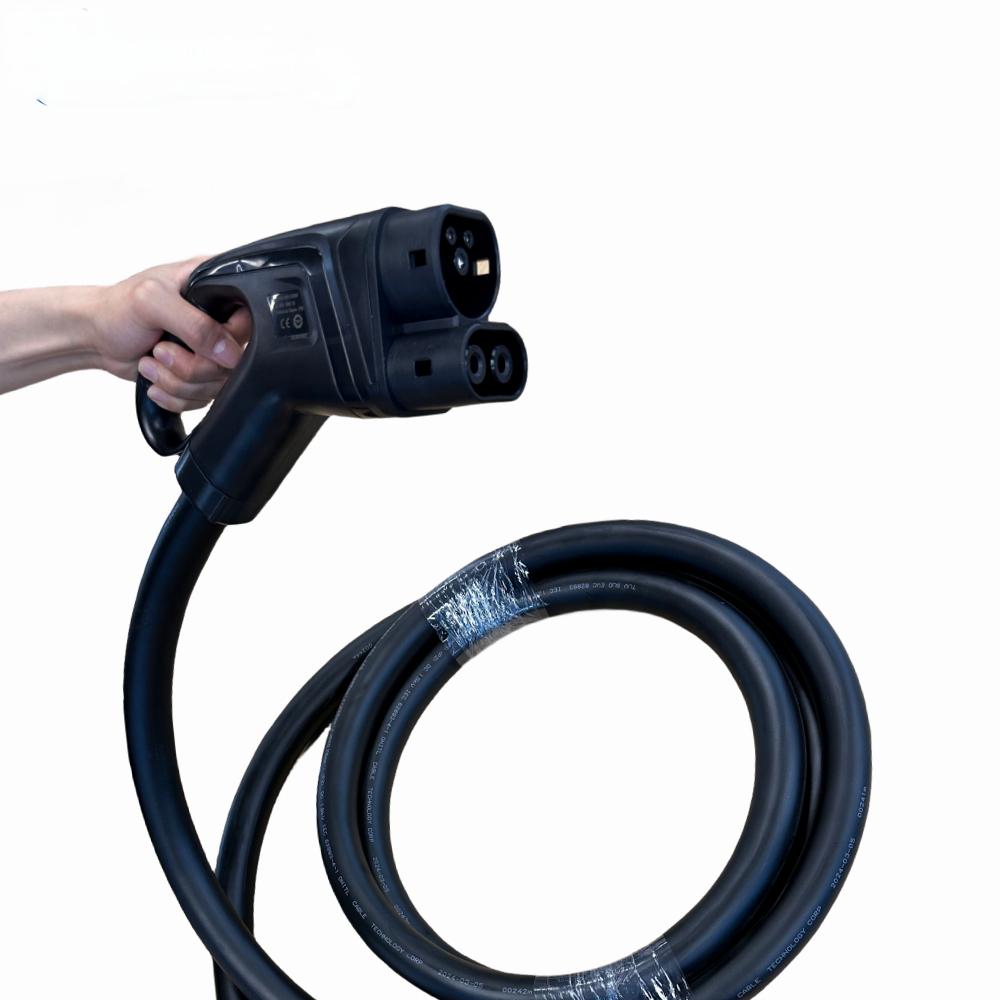

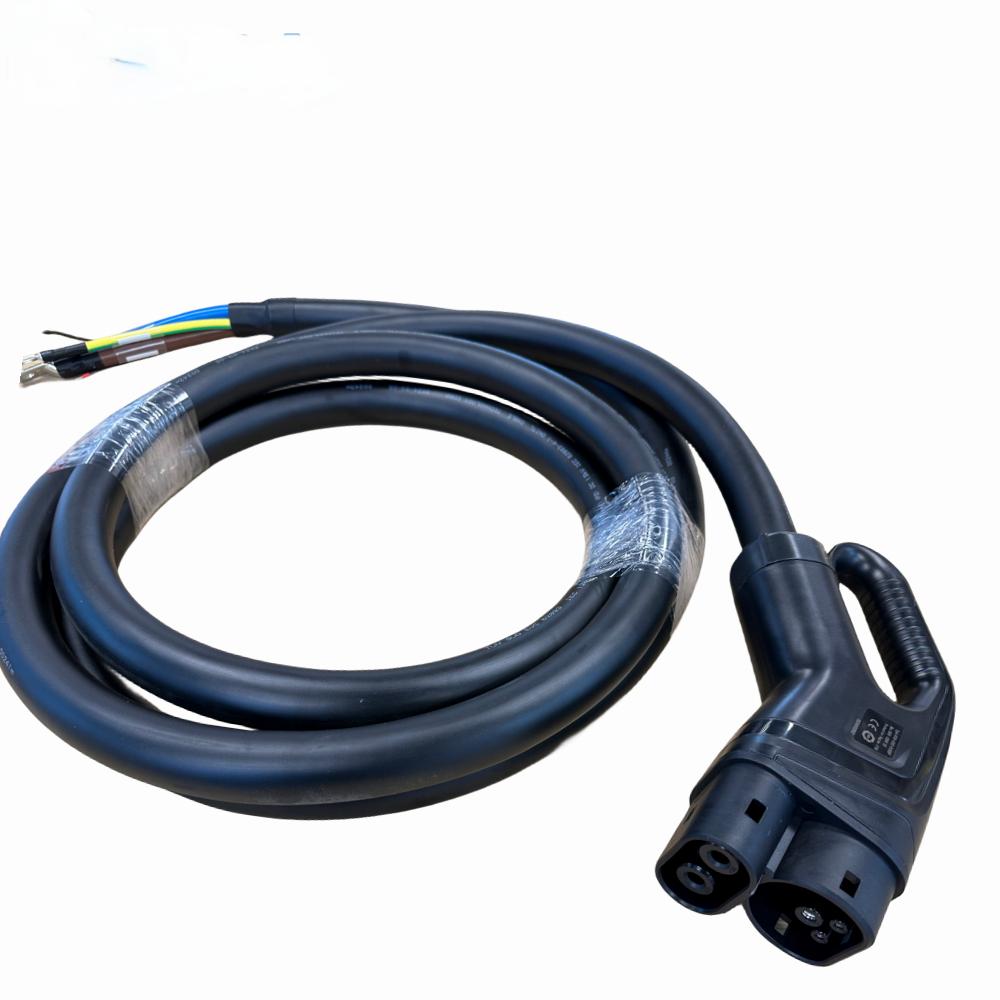

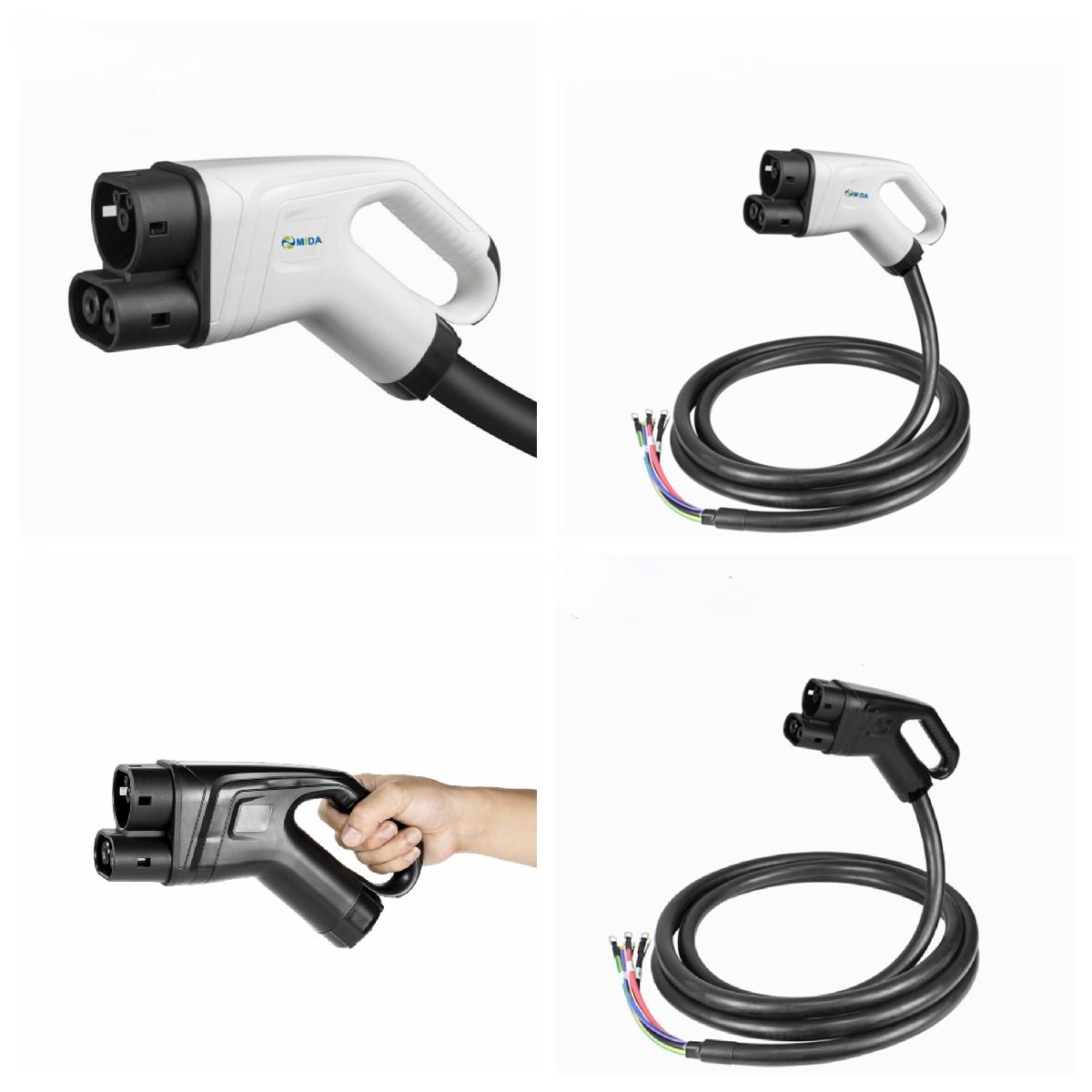

Russia 250A 300A CCS 2 Charging Connector MIDA CCS2 Plug

The Combined Charging System (CCS) is a standard for charging electric vehicles, which uses the 250A GBT Plug and 200A 250A 300A 350A CCS2 Plug connectors to provide power. CCS Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging. And the CCS2 Gun mainly use in Europe market.

Model:MIDA-CCS2-EV250P

Rated voltage:DC 1000V

Rated Current:250A/300A/350A

Therminal temperature rise:<50K

Protection Degree:IP55

Waterproof Withstand voltage:2000V

Working temperature:-30°C ~+50°C

Standard:EN 62196-1/ EN 62196-3

Certificate:CE, TUV Approved

PRODUCT INTRODUCTION:

1,250A 300A 350A 375A CCS2 EV plug. It’s used in DC fast charging & comply with IEC 62196-3 (EN 62196-3).

2,Combined Charging System (CCS) is based on open and universal standards for electric vehicles. Our 350A CCS Type 2 plug is used for direct-current charging at a maximum of 350 kW. Universally compatible, high-quality 250A 350A CCS2 Gun EV plugs designed for 10000+ charging cycles.

3,300A 350A CCS 2 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS2 Gun designed for 10000+ charging cycles. CCS2 Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. 200A CCS 2 Gun ,250A CCS2 Plug ,300A CCS2 Plug,350A CCS2 Connector

PRODUCT FEATURES

1,250A 300A CCS2 Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.

2,300A 350A CCS 2 Gun design for use in Combined Charging System applications UtiliSes proprietary silver-plated contacts for long-life durability 375A CCS Type 2 supporting AC & DC Charging standards of Europe, Asia ,Australia and increasingly global standards.

3,Air Cooling Liquid Cooling CCS2 Gun 250A CCS2 Connector,300A CCS Combo 2 Plug ,350A CCS2 EV plug

4, Liquid Cooling CCS Combo 2 Plug 400A 500A CCS2 Gun Terminal Quick-Change DC High Power EV Charging CCS2 Connector With EV Cable

PRODUCT FEATURES

1,250A 300A CCS2 Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.

3,Air Cooling Liquid Cooling CCS2 Gun 250A CCS2 Connector,300A CCS Combo 2 Plug ,350A CCS2 EV plug

4, Liquid Cooling CCS Combo 2 Plug 400A 500A CCS2 Gun Terminal Quick-Change DC High Power EV Charging CCS2 Connector With EV Cable

EV CHARGING CABLE CCS2 GUN FEATURES

Physical design

The 200A 250A 300A CCS2 Gun is an EV connector complies with the standard of IEC62196. The connector is compatible with AC and DC charging. Separate pins are used for each mode.

Ultrasonic Welding Technology

This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process of the EV.

Voltage Rating

The 250A ,300A ,350A CCS2 connector can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating. It is the ideal choice for anyone who wants to charge their electric vehicle quickly and efficiently. The CCS2 connector, with its high voltage rating, CCS2 Plug is ideal for charging electric vehicles.

Safe Features

The 250A 375A 350A CCS2 connector has a number of safety features that protect against potential hazards such as overvoltage and overcurrent. These features include short circuit protection, ground fault detection, and temperature monitoring.

Quality Assurance

MIDA CCS 2 EV Plugs can withstand more than 10,000 times of plugging and unplugging. Ensure the safety of long-term power supply, solid and durable, and wear-resistant. It reduces the operation and maintenance costs of electric vehicle charging enterprises.

OEM&ODM

250A 300A 350A CCS 2 Gun supports simple LOGO customization and also supports customization of the entire function and appearance. There are professional sales and technical personnel docking. Open the road of brand agency for you.

High Power Ratings

MIDA 200A 250A CCS2 plug Designed to handle high currents, offers exceptional power ratings of 300A, 350A, 400A, and 500A CCS 2 Connector. This outstanding capacity ensures ultra-fast DC charging speeds significantly reducing the time spent at charging stations.

Versatility and Compatibility

The 250A 300A CCS2 plug compatible with all CCS2 EV models on the market today.whether you own a compact electric car, a powerful electric SUV a heavy truck, a bus or a commercial electric vehicle, our 300A 350A CCS2 plug is designed to meet your DC fast charging needs

Enhanced Safety Features

Ultrasonic welding technology is used between the conductive terminal and the cable, the contact resistance tends to be zero, the temperature rise is lower during use and the service life of the product can be extended at the same time. And built-in temperature sensors, the charging process is safer
