Rated voltage:250/480V
Rated Current:16A/32A
Therminal temperature rise:<45K
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE TUV Approved
Protection Degree:IP55
PRODUCT CHARACTERISTIC:
Specification:
☆ Conform to the provisions and requirements of IEC62196-2 2016 2-llb, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
Item

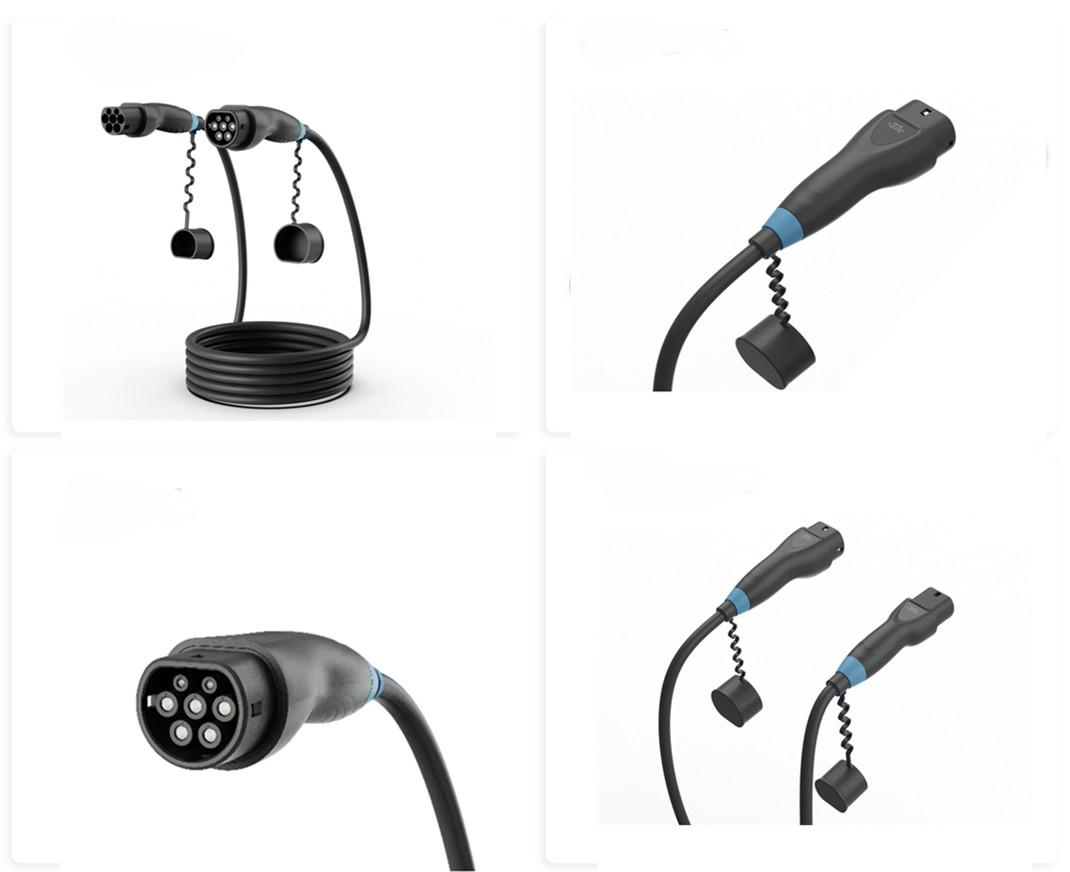

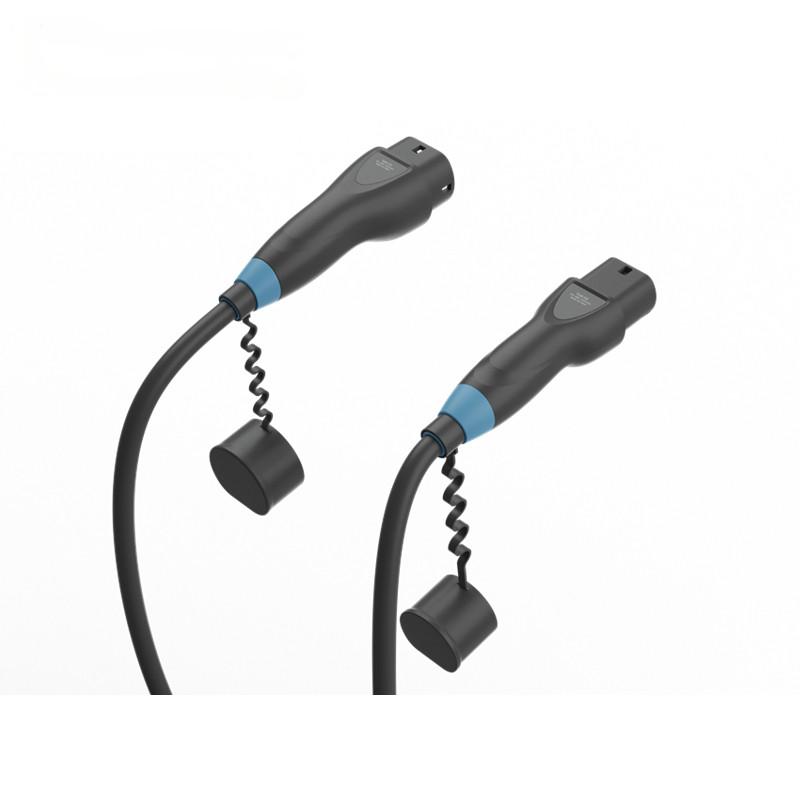

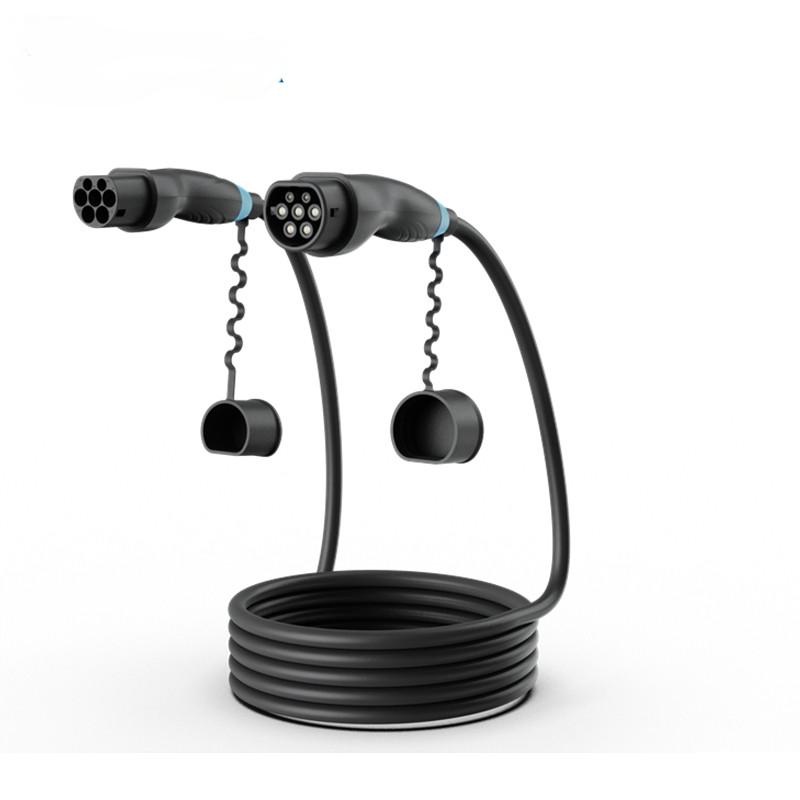

Type 2 to Type 2 EV Charging Cable
Standard
IEC 62196-2 : 2017
Product Model
MD-FM-16AS , MD-FM-32AS
MD-FM-16AT , MD-FM-32AT
Rated Current
16Amp , 32Amp
Operation Voltage
AC 250V / 480V
Insulation Resistance
＞1000MΩ ( DC 500V )
Withstand Voltage
2000V
Pin Material
Copper Alloy, Silver Plating
Shell Material
Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life
No-Load Plug In / Pull Out ＞10000 Times
Contact Resistance
0.5mΩ Max
Terminal Temperature Rise
＜50K
Operating Temperature
-30°C~+50°C
Impact Insertion Force
>300N
Waterproof Degree
IP55
Cable Protection
Reliability of materials,antiflaming,pressure-resistant,
abrasion resistance,impact resistance and high oil
Certification
TUV, UL , CE Approved
☆ Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
☆ XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
☆ Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
☆ Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
☆ Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier.
