•ChaoJi Technology ensure compatibility between ChaoJi and GB, CHAdeMO, CCS. •ChaoJi as common language between Car and Charger. •ChaoJi as the base for future international harmonization. •ChaoJi connector as CHAdeMO 3.0, is an ultra-high-power charging standard charging electric cars.
Model:MIDA-CHAOJI-EV600P
Rated voltage:DC 1500V
Rated Current:600A
Therminal temperature rise:<50K
Protection Degree:IP55
Waterproof Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Standard:IEC PAS 63454 ED1
Certificate:CE, TUV Approved
PRODUCT INTRODUCTION:
1,600A Chaoji EV plug. It’s used in DC fast charging & comply with IEC PAS 63454 ED1.
2,600A Chaoji Connector HPC 600kW Chaoji Plug DC Charging Cable
•ChaoJi Technology ensure compatibility between ChaoJi and GB, CHAdeMO, CCS.
1,600A HPC Chaoji Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2,600A Chaoji Gun design for use in Combined Charging System applications UtiliSes proprietary silver-plated contacts for long-life durability 600A Chaoji supporting AC & DC Charging standards of Europe, Asia ,Australia and increasingly global standards.
3,Air Cooling Liquid Cooling HPC CHAOJI Gun 600A CHAOJI Connector,600A CHAOJI Plug ,600A HPC CHAOJI EV plug
4, Liquid Cooling CHAOJI Plug 400A 500A HPC CHAOJI Gun Terminal Quick-Change DC High Power EV Charging CHAOJI Connector With EV Cable.
Physical design

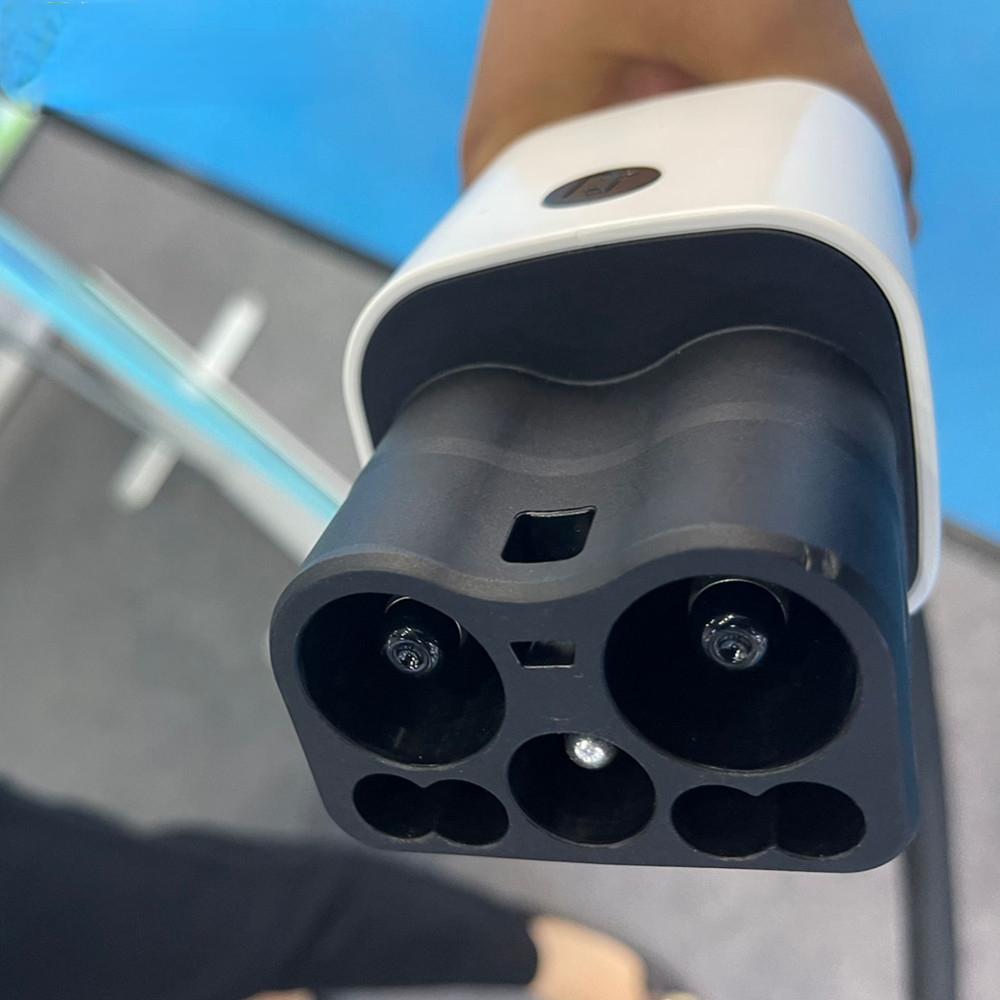

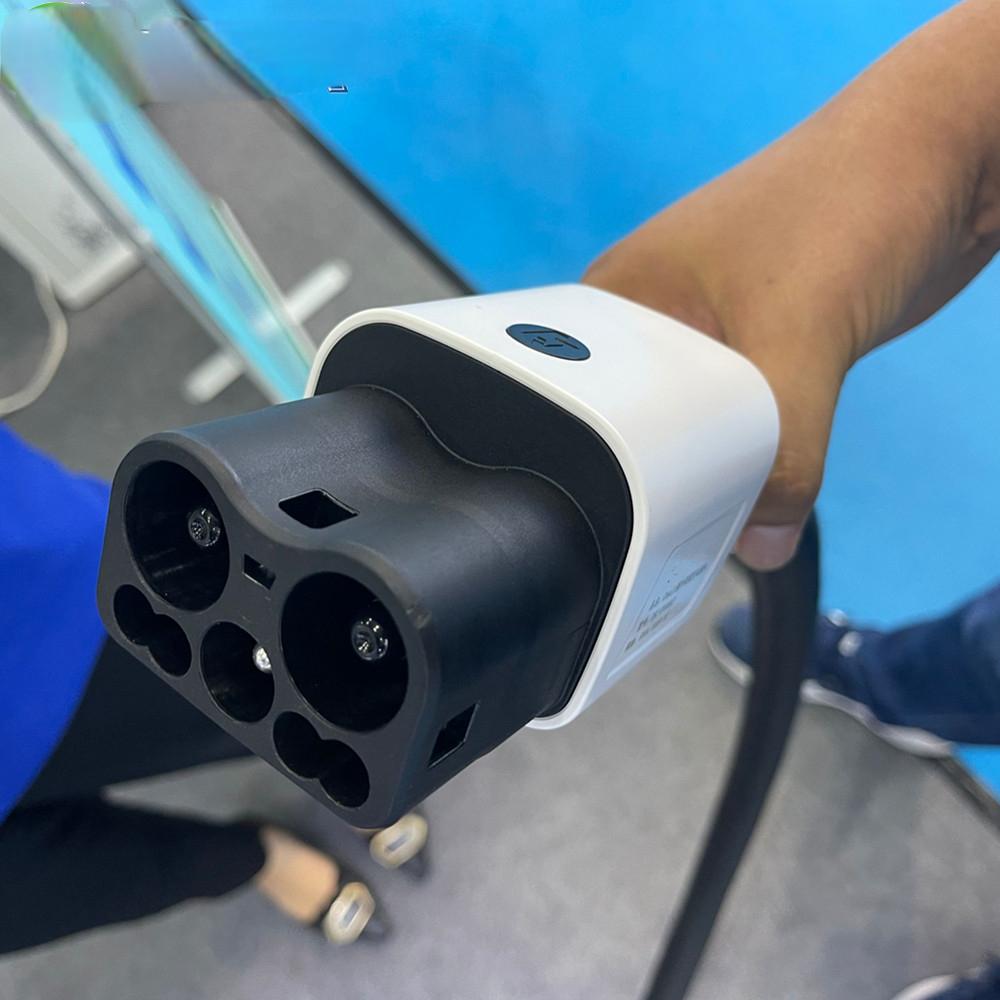

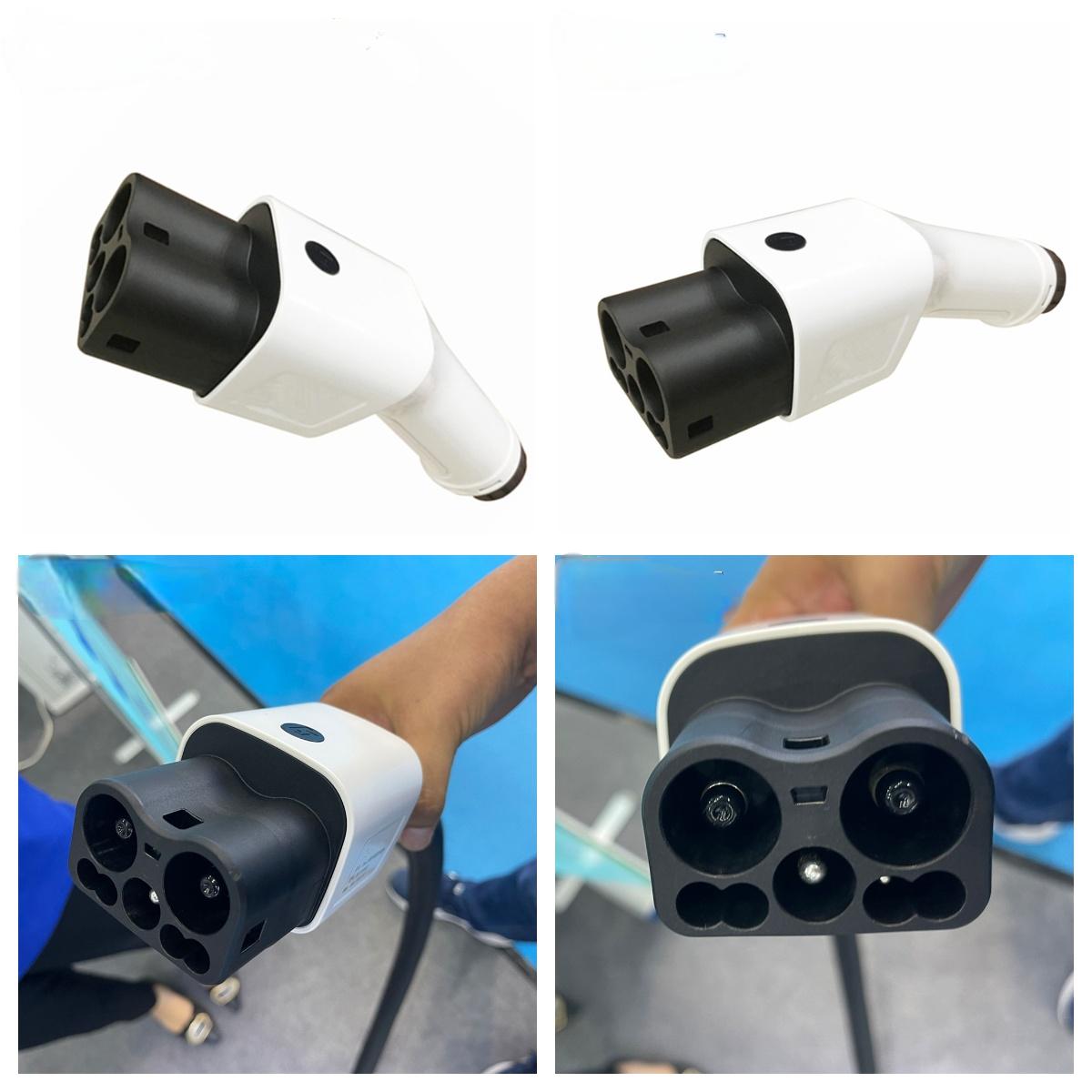

The 600A CHAOJI Gun is an EV connector complies with the standard of IEC PAS 63454 ED1. The connector is compatible with DC Charging Plug. Separate pins are used for each mode.
Ultrasonic Welding Technology
This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process of the EV.
Voltage Rating
The 600A Chaoji connector can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating. It is the ideal choice for anyone who wants to charge their electric vehicle quickly and efficiently. The Chaoji connector, with its high voltage rating, HPC Chaoji Plug is ideal for charging electric vehicles.
Safe Features
The 600A HPC Chaoji connector has a number of safety features that protect against potential hazards such as overvoltage and overcurrent. These features include short circuit protection, ground fault detection, and temperature monitoring.
Quality Assurance
MIDA Chaoji Liquid-Cooled HPC Plug EV Plugs can withstand more than 10,000 times of plugging and unplugging. Ensure the safety of long-term power supply, solid and durable, and wear-resistant. It reduces the operation and maintenance costs of electric vehicle charging enterprises.
OEM&ODM
600A CHAOJI Gun Liquid-Cooled HPC Plug supports simple LOGO customization and also supports customization of the entire function and appearance. There are professional sales and technical personnel docking. Open the road of brand agency for you.
High Power Ratings
MIDA CHAOJI plug Designed to handle high currents, offers exceptional power ratings of 500A, and 600A CHAOJI Connector. This outstanding capacity ensures ultra-fast DC charging speeds significantly reducing the time spent at charging stations.
Versatility and Compatibility
The 500A 600A CHAOJI plug compatible with all HPC CHAOJI EV models on the market today.whether you own a compact electric car, a powerful electric SUV a heavy truck, a bus or a commercial electric vehicle, our 500A CHAOJI plug is designed to meet your DC fast charging needs
Enhanced Safety Features
Ultrasonic welding technology is used between the conductive terminal and the cable, the contact resistance tends to be zero, the temperature rise is lower during use and the service life of the product can be extended at the same time. And built-in temperature sensors, the charging process is safer
•ChaoJi as common language between Car and Charger.
•ChaoJi as the base for future international harmonization.
•ChaoJi connector as CHAdeMO 3.0, is an ultra-high-power charging standard charging electric cars.
Features
1. Meet IEC PAS 63454 ED1 standard
2. Concise appearance, support back installation
3. Back Protection class IP55
4.Max charging power: 600kW
5. AC Max charging power: 45.36kW
Mechanical Properties
1. Mechanical life: no-load plug in/pull out＞10000 times
2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance
1. DC input: 600A 1000V DC MAX
2. AC input: 16A 32A 63A 240/415V AC MAX
3. Insulation resistance: ＞2000MΩ（DC1000V）
4. Terminal temperature rise: ＜50K
5. Withstand Voltage: 3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin: Copper alloy,silver +thermoplastic on the top
Environmental Performance
1. Operating temperature: -30°C~+50°C
