The DC fast charging standard (GB/T 20234.3) uses a different, larger connector and allows for fast charging at up to 250kW, with current of 80/125/200/250A, and voltage of 750-1000V.However, 50 kW or other lower rated power chargers are more commonly seen, typically retaining the minimum GB/T voltage of 750V but with different current ratings. Some chargers may also follow the physical plug specified by GB/T 20234.3 but not the GB/T standard power limits by using a lower voltage than 750V, such as 500V.

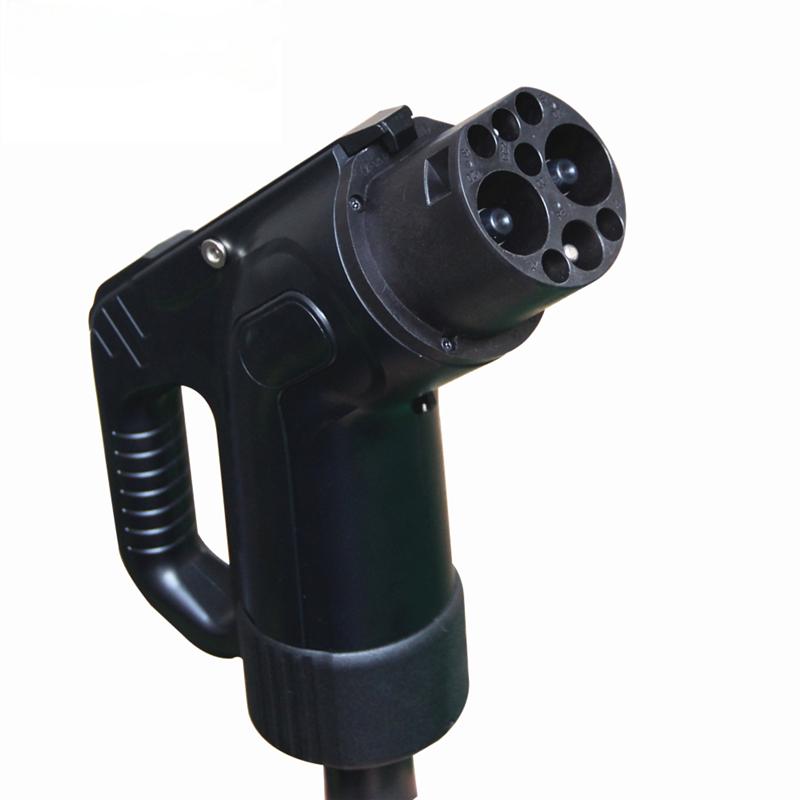

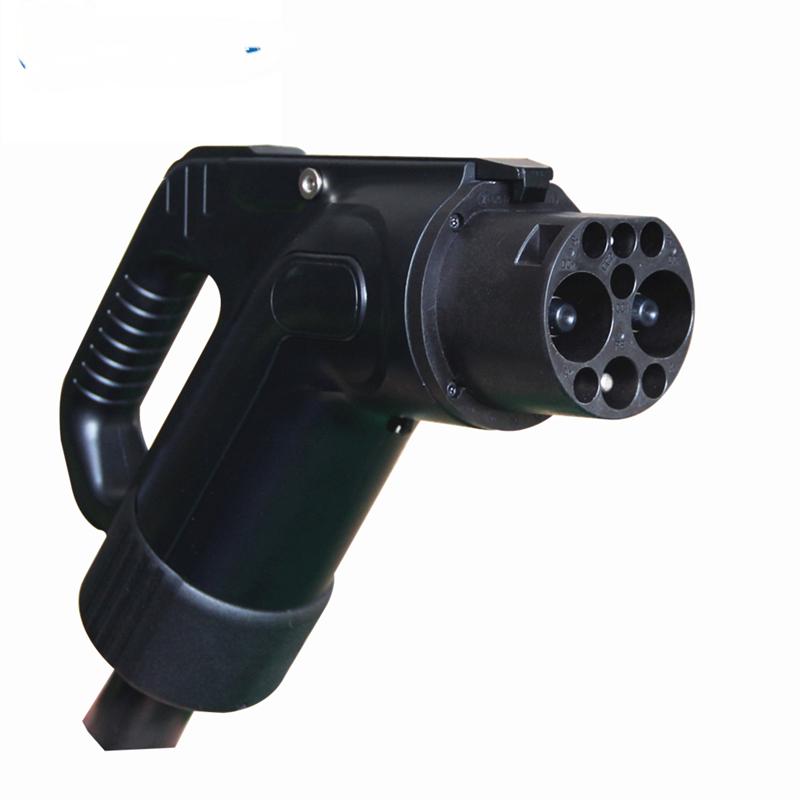

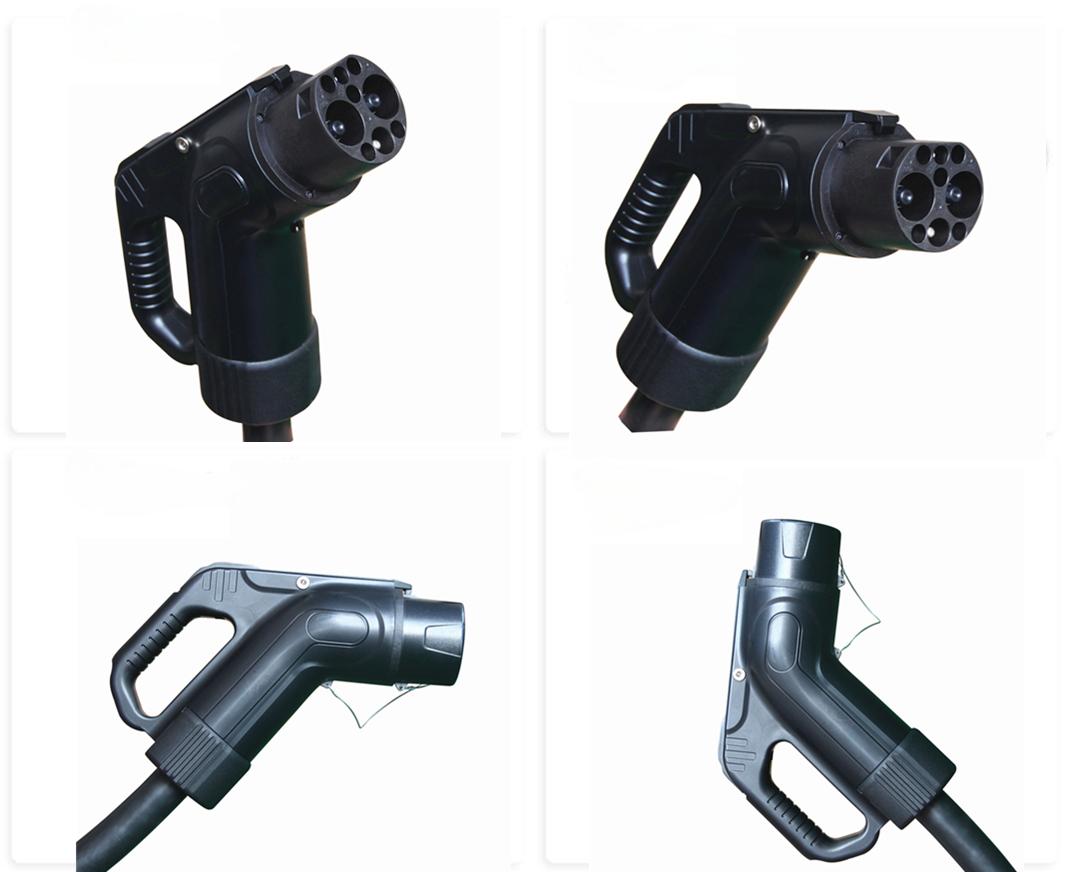

Model:MIDA-GBT-EV150P
Rated voltage:DC 1000V
Rated Current:150A 250A
Therminal temperature rise:<50K
Protection Degree:IP55 Waterproof
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Standard:EN 62196-1/ EN 62196-3
Certificate:CE, CQC Approved
PRODUCT INTRODUCTION:
1,GB/T EV plug are available in 80A to 250A. It’s used in DC fast charging & comply with GB/T 20234.3.
2,Combined Charging System (GBT) is based on open and universal standards for electric vehicles. Our GB/T plug is used for direct-current charging at a maximum of 250 kW. Universally compatible, high-quality GB/T Gun EV plugs designed for 10000+ charging cycles.
3,GB/T Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality GB/T Gun designed for 10000+ charging cycles. GB/T Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. 80A GB/T Gun ,125A GB/T Plug ,200A GB/T Plug,250A GB/T Connector.
1,250A GB/T Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2,250A GB/T Gun design for use in Combined Charging System applications UtiliSes proprietary silver-plated contacts for long-life durability GB/T supporting AC & DC Charging standards of Europe, Asia ,Australia and increasingly global standards.
3,GB/T DC Gun 80A GB/T Connector,125A GB/T Plug ,200A GB/T EV plug,250A GB/T Charger connector.
4, 250A GB/T Gun Terminal Quick-Change DC High Power EV Charging GB/T Connector With EV Cable.
Physical design
The 250A GB/T Gun is an EV connector complies with the standard of GBT 20234.3-2015. The connector is compatible with AC and DC charging. Separate pins are used for each mode.
Ultrasonic Welding Technology
This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process of the EV.
Voltage Rating
The 80A ,125A ,200A ,250A GB/T connector can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating. It is the ideal choice for anyone who wants to charge their electric vehicle quickly and efficiently. The GB/T connector, with its high voltage rating, GB/T Plug is ideal for charging electric vehicles.
Safe Features
The 250A GB/T connector has a number of safety features that protect against potential hazards such as overvoltage and overcurrent. These features include short circuit protection, ground fault detection, and temperature monitoring.
Quality Assurance
GB/T EV Plugs can withstand more than 10,000 times of plugging and unplugging. Ensure the safety of long-term power supply, solid and durable, and wear-resistant. It reduces the operation and maintenance costs of electric vehicle charging enterprises.
OEM&ODM
250A GB/T Gun supports simple LOGO customization and also supports customization of the entire function and appearance. There are professional sales and technical personnel docking. Open the road of brand agency for you.
High Power Ratings
250A GB/T plug Designed to handle high currents, offers exceptional power ratings of 80A, 125A, 200A, and 250A GB/T Connector. This outstanding capacity ensures ultra-fast DC charging speeds significantly reducing the time spent at charging stations.
Versatility and Compatibility
The 250A GB/T plug compatible with all GB/T EV models on the market today.whether you own a compact electric car, a powerful electric SUV a heavy truck, a bus or a commercial electric vehicle, our GB/T plug is designed to meet your DC fast charging needs
Enhanced Safety Features
Ultrasonic welding technology is used between the conductive terminal and the cable, the contact resistance tends to be zero, the temperature rise is lower during use and the service life of the product can be extended at the same time. And built-in temperature sensors, the charging process is safer
Features
1. Meet GB/T 2023.3-2015 standard
2. Concise appearance, support back installation
3. Back Protection class IP55
4.Max charging power: 250kW
Mechanical Properties
1. Mechanical life: no-load plug in/pull out＞10000 times
2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance
1. DC input: 250A 1000V DC MAX
3. Insulation resistance: ＞2000MΩ（DC1000V）
4. Terminal temperature rise: ＜50K
5. Withstand Voltage: 3200V
6. Contact resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin: Copper alloy,silver +thermoplastic on the top
Environmental Performance
1. Operating temperature: -30°C~+50°C
China comprehensive new energy solutions provider, products line include: EV connectors, EV charger sockets, portable EV chargers, CCS2 connectors, Tesla Nacs plug, DC Fast charger and EV Accessories .OEM/ODM production services.
