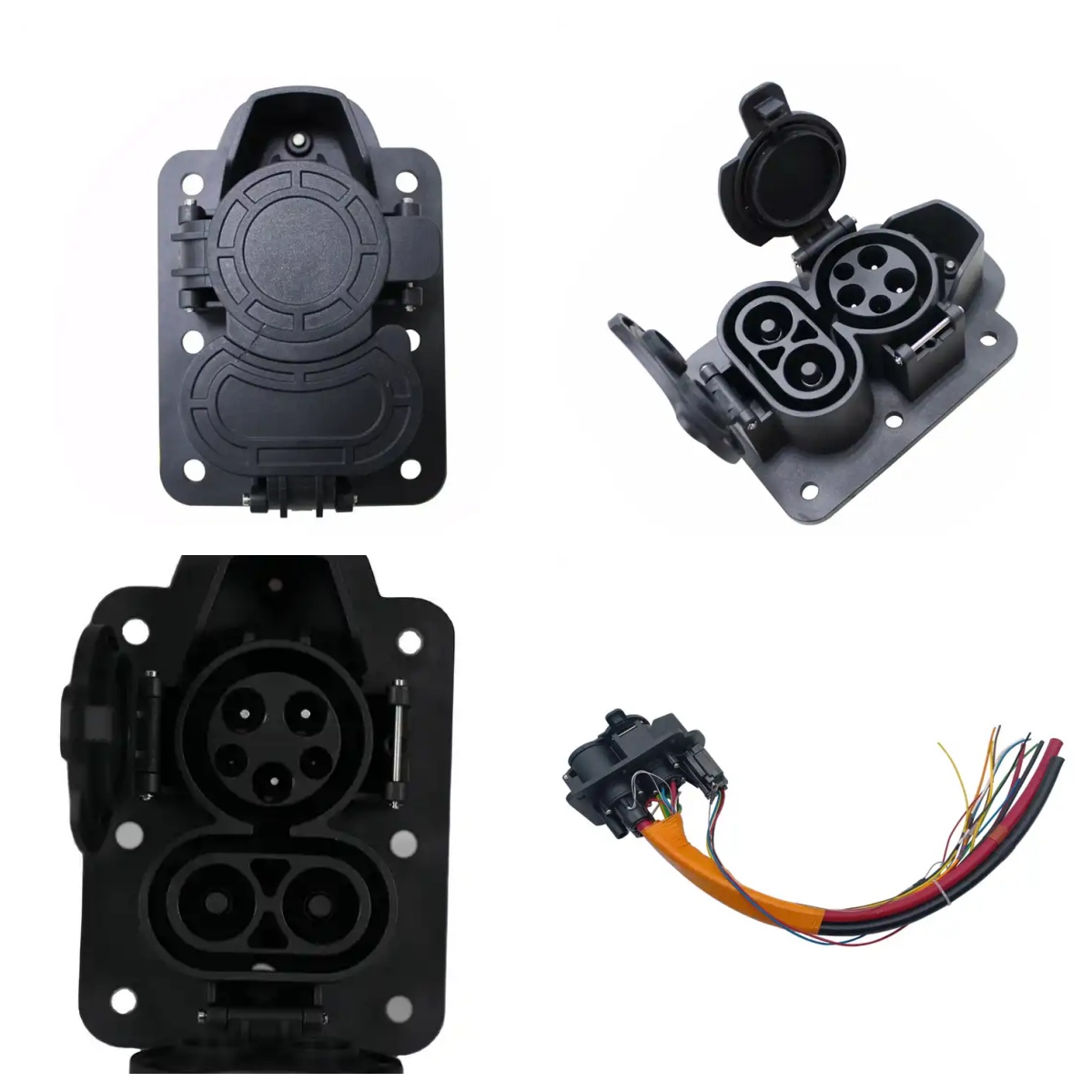

CCS1 is the standard charging socket used in North America for electric vehicles, featuring a design that includes the DC pins and communication protocols. It is compatible with most EVs on the market, except for Tesla and Nissan Leaf, which use proprietary sockets. The CCS1 socket can deliver between 50 kW and 350 kW of DC power, making it suitable for fast charging.
Rated Current:80A/125A/150A/200A/250A/300A/350A
Rated voltage:1000V
Therminal temperature rise:<50K
Protection Degree:IP55
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE Approved, UL
CCS 1 is the DC fast charging standard for North America. lt can deliver up to 500 amps and 1000 volts DCproviding a maximum power output of 360 kW.

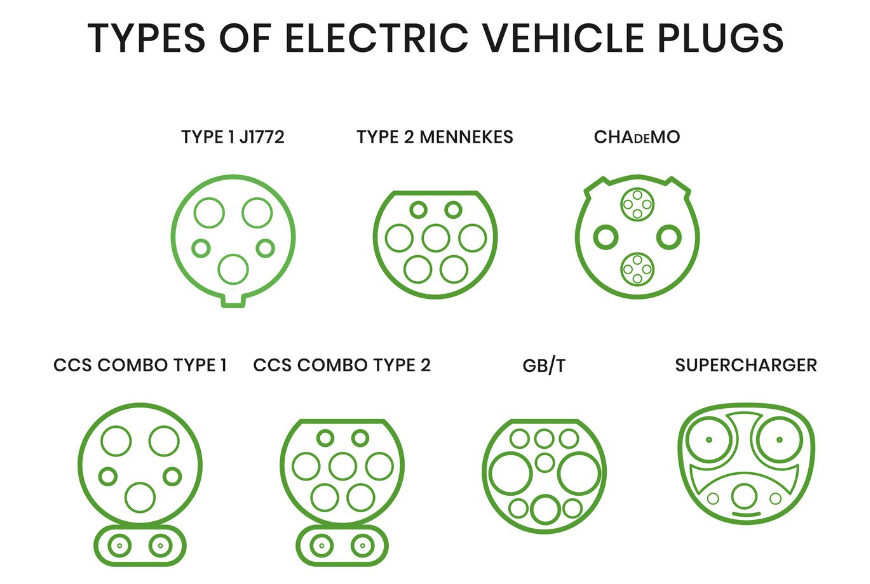

The Combined Charging System utilizes the same communication protocol as the SAE J1772Type 1 connector. lt enables vehicle manufacturers to have one AC and DC charging portrather than two separate ports.
| Model | CCS 1 socket |
| Rated current |
DC+/DC-：80A,125A,150A,200A,250A,300A,350A； L1/L2/L3/N：16A,32A,40A,50A,80A； PP/CP：2A |
| Wire Diameter |
80A/16mm2 125A/35mm2 150A/50mm2 200A/70mm2 250A/95mm2 300A/95mm2 350A/120mm2 |
| Rated voltage |
DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -40℃~50℃ |
| Degree of Protection |
IP55(When not mated) IP44(After mated) |
| Main material | |
| Shell | PA |
| Insulation part | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |
Alternating Current
The Combo CCS1 charging socket is available. It combines alternating current (AC) Type 1 charging and direct current (DC) CCS fast charge in one inlet.
Safe Charging
CCS1 EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Investment Value
This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The Combo CCS1 socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its multi-avaliable current rating and easy installation make it a great choice for both residential and commercial applications.
Market Analysis
The socket is designed to be used with type 1 charging connectors, which are becoming increasingly commonplace across Europe. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
