The CCS2 charging socket is a newer version of the CCS1 and is the preferred connector for European and American automakers. It features a combined inlet design that makes it more convenient and easier to use for EV drivers. The CCS2 sockets combines the inlets for both AC and DC charging.
Rated Current:150A
Rated voltage:1000V
Therminal temperature rise:<50K
Protection Degree:IP55
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE Approved

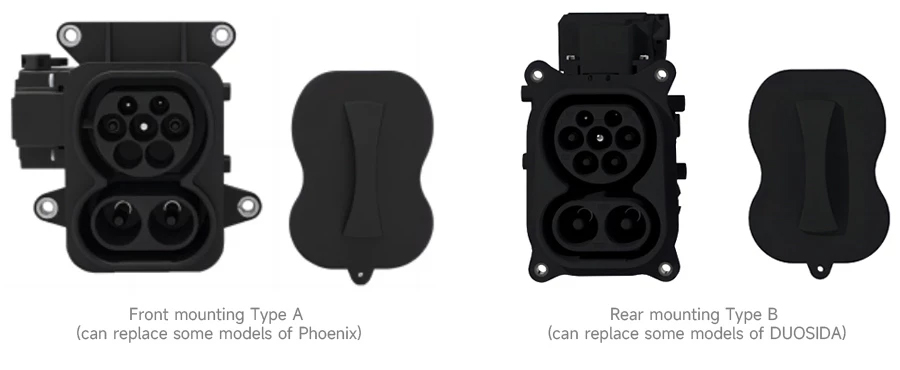

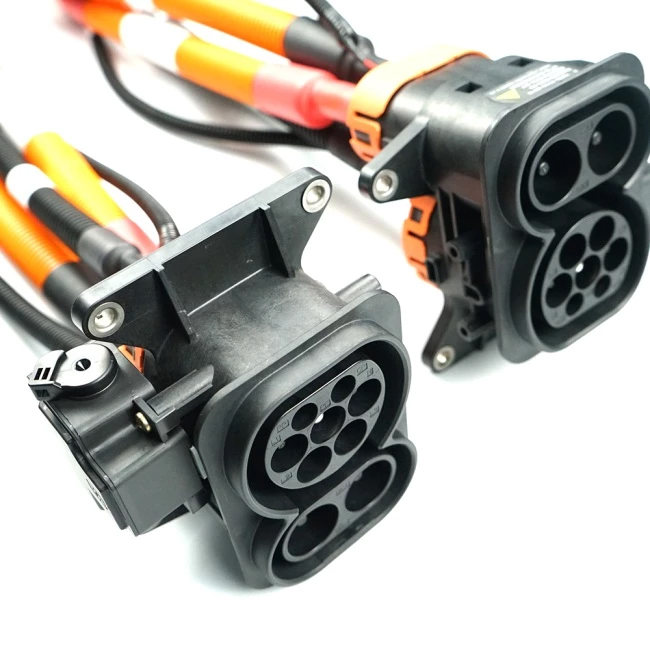

SCZ series European standard CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
| Model | CCS 2 socket |
| Rated current |
DC+/DC-：80A,125A,150A,200A,250A,300A,400A； L1/L2/L3/N：32A； PP/CP：2A |
| Wire Diameter |
80A/16mm2 125A/35mm2 150A/50mm2 200A/70mm2 250A/95mm2 300A/95mm2 400A/120mm2 |
| Rated voltage |
DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -40℃~50℃ |
| Degree of Protection |
IP55(When not mated) IP44(After mated) |
| Main material | |
| Shell | PA |
| Insulation part | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |
Alternating Current
The Combo CCS2 charging socket is available in 150A. It combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet.
Safe Charging
CCS2 EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Investment Value
This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The Combo CCS2 socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its 150A rating and easy installation make it a great choice for both residential and commercial applications.
Market Analysis
The socket is designed to be used with type 2 charging connectors, which are becoming increasingly commonplace across Europe. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
