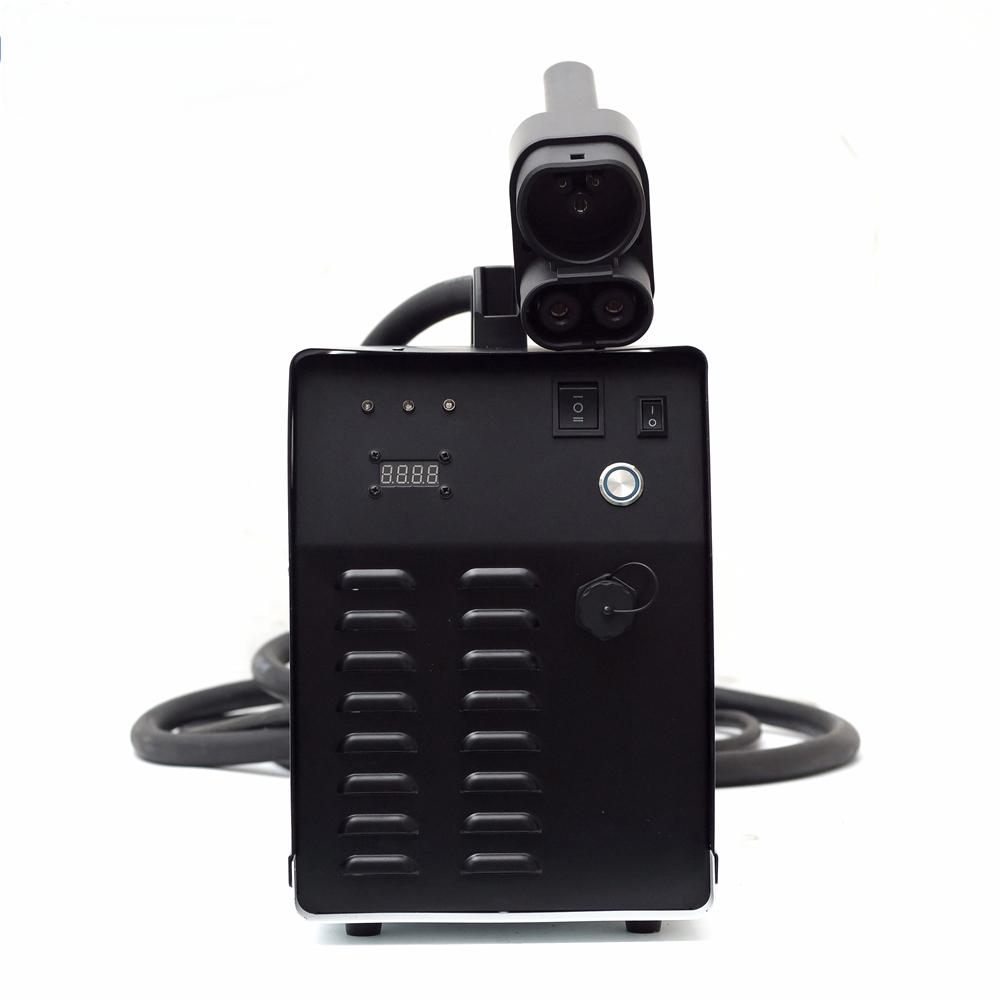

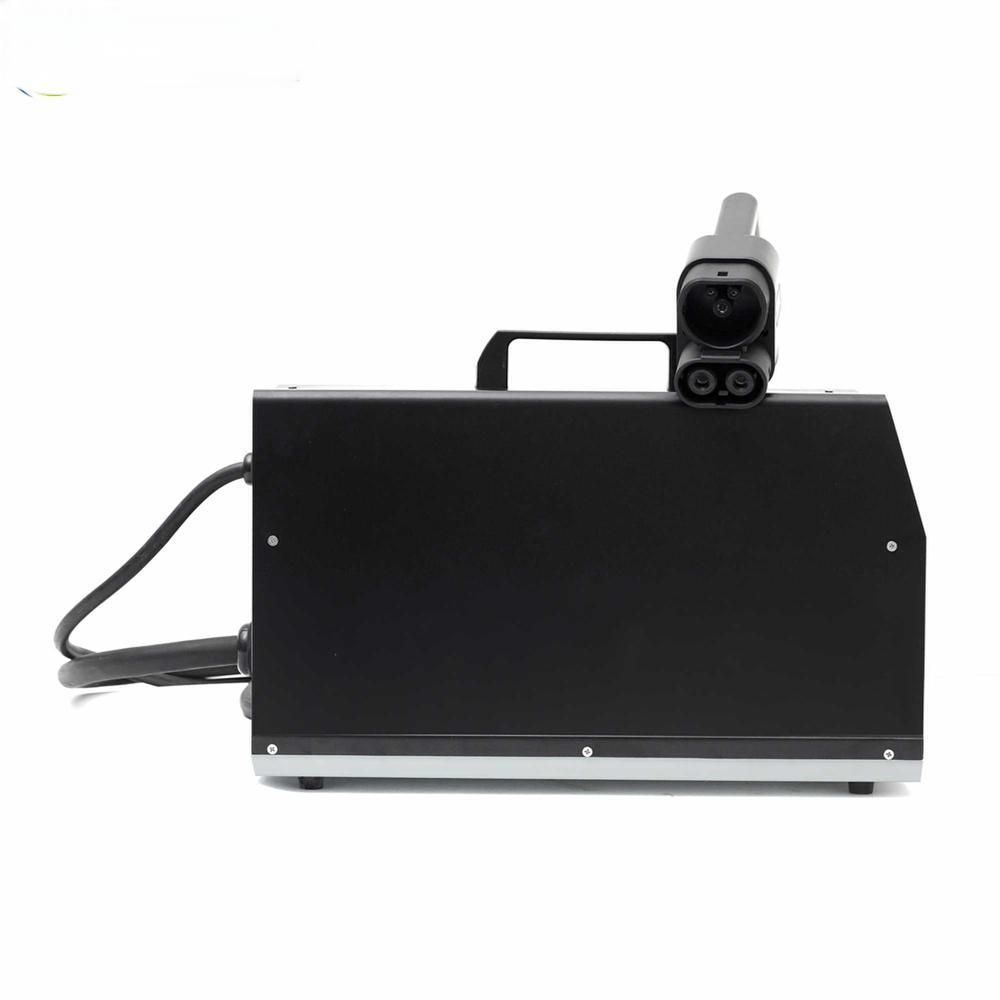

The 7KW portable charger produced by our company,
with input voltage of 380V,rated output power of 7KW,
it is supporting CCS and CHAdeMO,GBT only by replace the cable.
Model:MIDA-CCS2-7KW
Rated voltage:DC 500V
Input Rating:380Vac± 15%
Power Factor:>0.99 @ full load TFT-LCD
Touch Panel:4.3' touch display
Certification:CE ROHS
PRODUCT INTRODUCTION:
Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module.This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.
PRODUCT FEATURES:
✔ Small size and compact design, easy for portable
✔ It is supporting CCS and CHAdeMO connector
✔ Certification: CE/IEC/ROHS
✔ Protection Degree: IP54
✔ Open door design, it is very convenient to replace power module.
SPECIFICATION:
| AC Input | 1. Input Rating:380Vac± 15% |
| 2. AC Input Connection:3P+N+PE (Wye connection) | |
| 3.Max. Input Current:100A | |
| 4.Efficiency: 95% | |
| DC Output | 1. Output Voltage Range:50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max.Output Power:7KW | |
| 3Max.Output Current:150A@400V,120A@500V, 80A@750V | |
| User Interface | 1. TFT-LCD Touch Panel:4.3' touch display |
| 2.Push Buttons:Emergency Stop | |
| 3. Interface:USB, RJ45 | |
| Packing | 1.Dimension:690*680*300mm |
| 2.Weight:20KGS | |
| Environment | 1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above |
| 2. Humidity: 5% ~ 90% RH, non-condensing | |
| 3.Altitude: 2000m | |
| 4.IP Level: IP23 | |
| Regulation | 1.Regulation: IEC61851-1 |
| 2.Certification: CE,ROHS | |
| 3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23 |
1) Warranty time: 12 months.
2) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not.
3) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.
4) Production service: keep tracking for the progress of production, you will know how they are produced.
