1. It is supporting CCS and CHAdeMO only by replace the cable.
2. USB for firmware update and RJ45 port for internet connect (optional)
3. Can change setting via touch display freely.
4. CE and ROHS Certificate,we are members of CHADEMO Association.

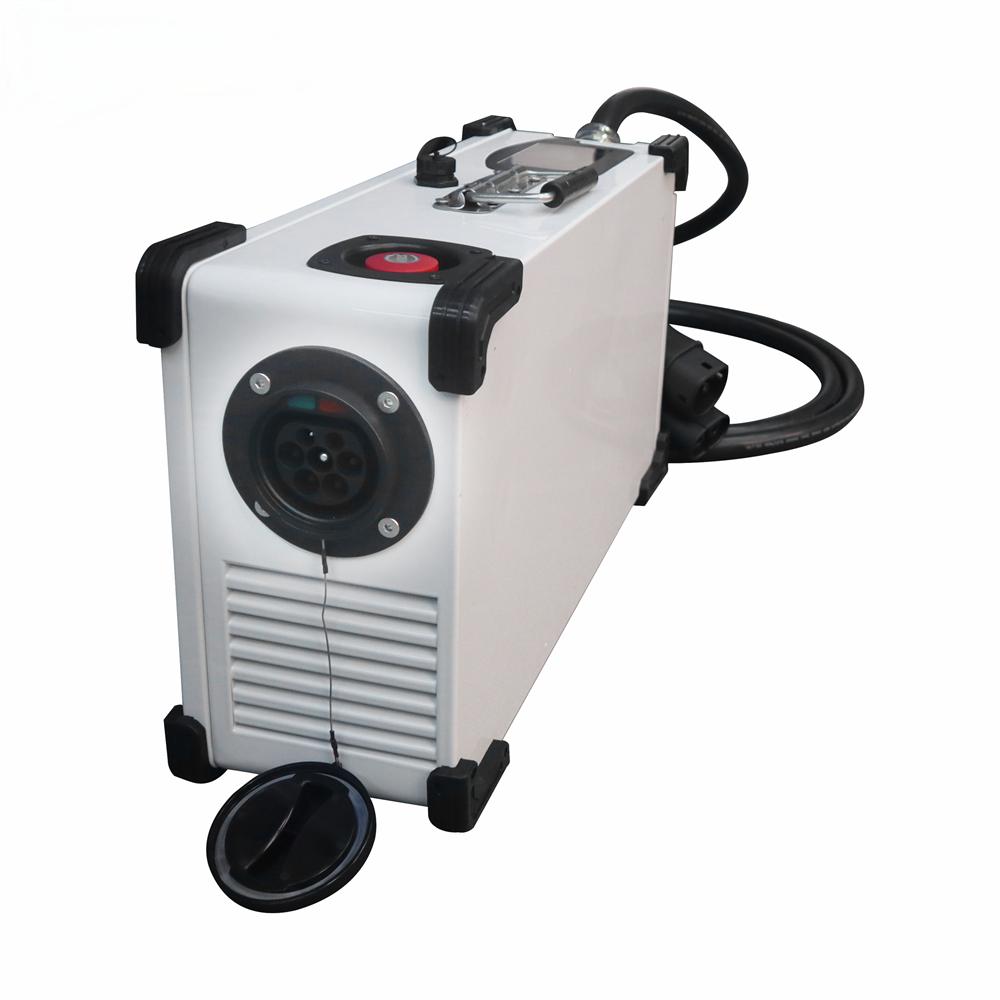

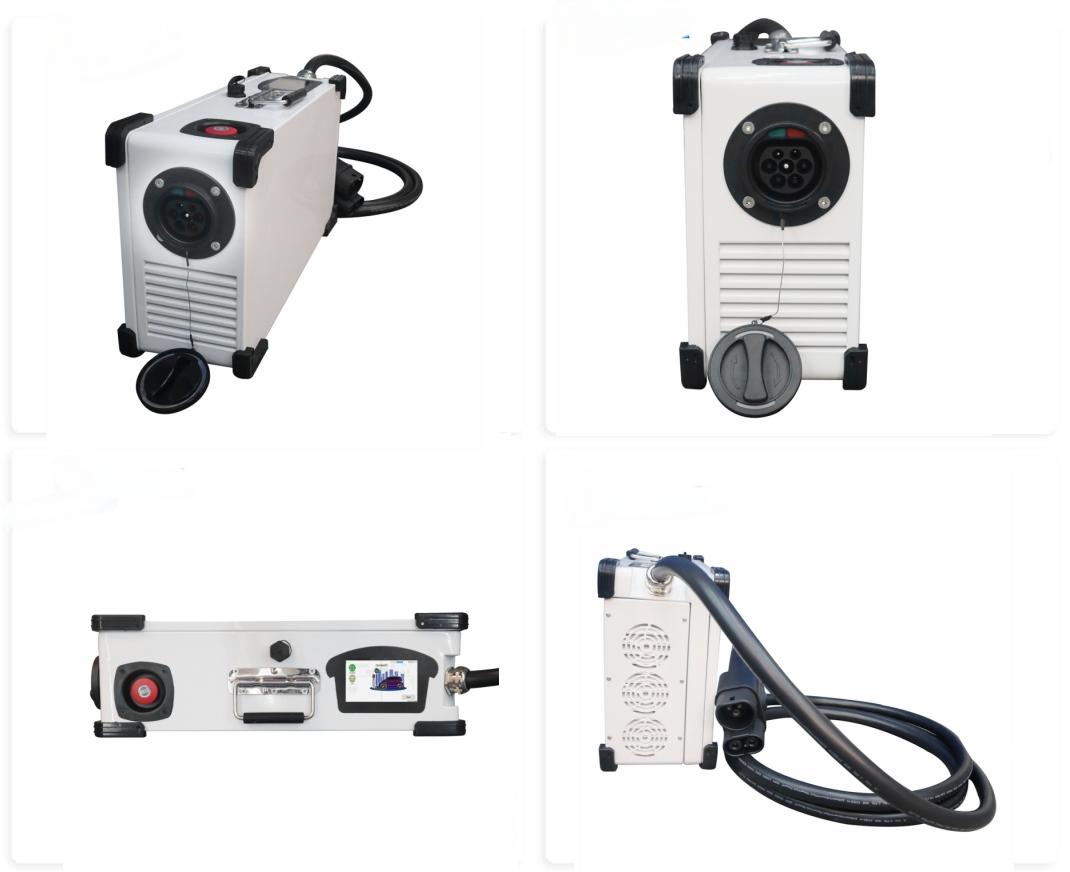

Model:MIDA-PD-20KW
Rated voltage:DC 500V
Input Rating:380Vac± 15%
Power Factor:>0.99 @ full load
TFT-LCD Touch Panel:4.3' touch display
Certification:CE ROHS
PRODUCT INTRODUCTION:
✔ Small size and compact design, easy for portable
1) Warranty time: 12 months.
2) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not.
3) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.
4) Production service: keep tracking for the progress of production, you will know how they are produced.
CCS
BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO
Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T
BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
✔ It is supporting CCS and CHAdeMO connector
✔ Certification: CE/IEC/ROHS
✔ Protection Degree: IP54
✔ Open door design, it is very convenient to replace power module.
AC Input
1. Input Rating:380Vac± 15%
2. AC Input Connection:3P+N+PE (Wye connection)
3.Max. Input Current:70A
4.Efficiency: 95%
DC Output
1. Output Voltage Range:50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
2. Max.Output Power:20KW
3Max.Output Current:37.5A@500V
User Interface
1. TFT-LCD Touch Panel:4.3' touch display
2.Push Buttons:Emergency Stop
3. Interface:USB, RJ45
Packing
1.Dimension:485*399*165mm
2.Weight:18KGS
Environment
1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above
2. Humidity: 5% ~ 90% RH, non-condensing
3.Altitude: 2000m
4.IP Level: IP23
Regulation
1.Regulation: IEC62196-3
2.Certification: CE,ROHS
3. Charging protocol: CHAdeMO 2.0/DIN 70121
