1. It is supporting CHAdeMO.
2. USB for firmware update and RJ45 port for internet connect (optional)
3. Can change setting via touch display freely.
4. CE and ROHS Certificate

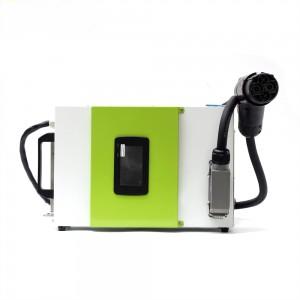

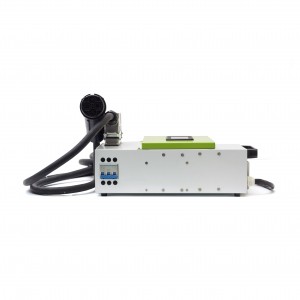

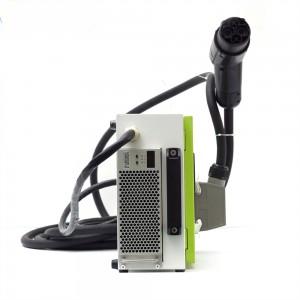

Model:MIDA-PD-15KW
Rated voltage:DC 500V
Input Rating:380Vac± 15%
Power Factor:>0.99 @ full load
TFT-LCD Touch Panel:4.3' touch display
Certification:CE ROHS
PRODUCT INTRODUCTION:
✔ Small size and compact design, easy for portable
1) Warranty time: 12 months.
2) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not.
3) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.
4) Production service: keep tracking for the progress of production, you will know how they are produced.
CCS
BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO
Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T
BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
✔ It is supporting CCS and CHAdeMO connector
✔ Certification: CE/IEC/ROHS
✔ Protection Degree: IP54
✔ Open door design, it is very convenient to replace power module.
AC Input
1. Input Rating:380Vac± 15%
2. AC Input Connection:3P+N+PE (Wye connection)
3.Max. Input Current:70A
4.Efficiency: 95%
DC Output
1. Output Voltage Range:50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
2. Max.Output Power:15KW
3Max.Output Current:37.5A@500V
User Interface
1. TFT-LCD Touch Panel:4.3' touch display
2.Push Buttons:Emergency Stop
3. Interface:USB, RJ45
Packing
1.Dimension:485*399*165mm
2.Weight:18KGS
Environment
1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above
2. Humidity: 5% ~ 90% RH, non-condensing
3.Altitude: 2000m
4.IP Level: IP23
Regulation
1.Regulation: IEC62196-3
2.Certification: CE,ROHS
3. Charging protocol: CHAdeMO
