It is the EV technology that allows your EV to supply electricity to your home.

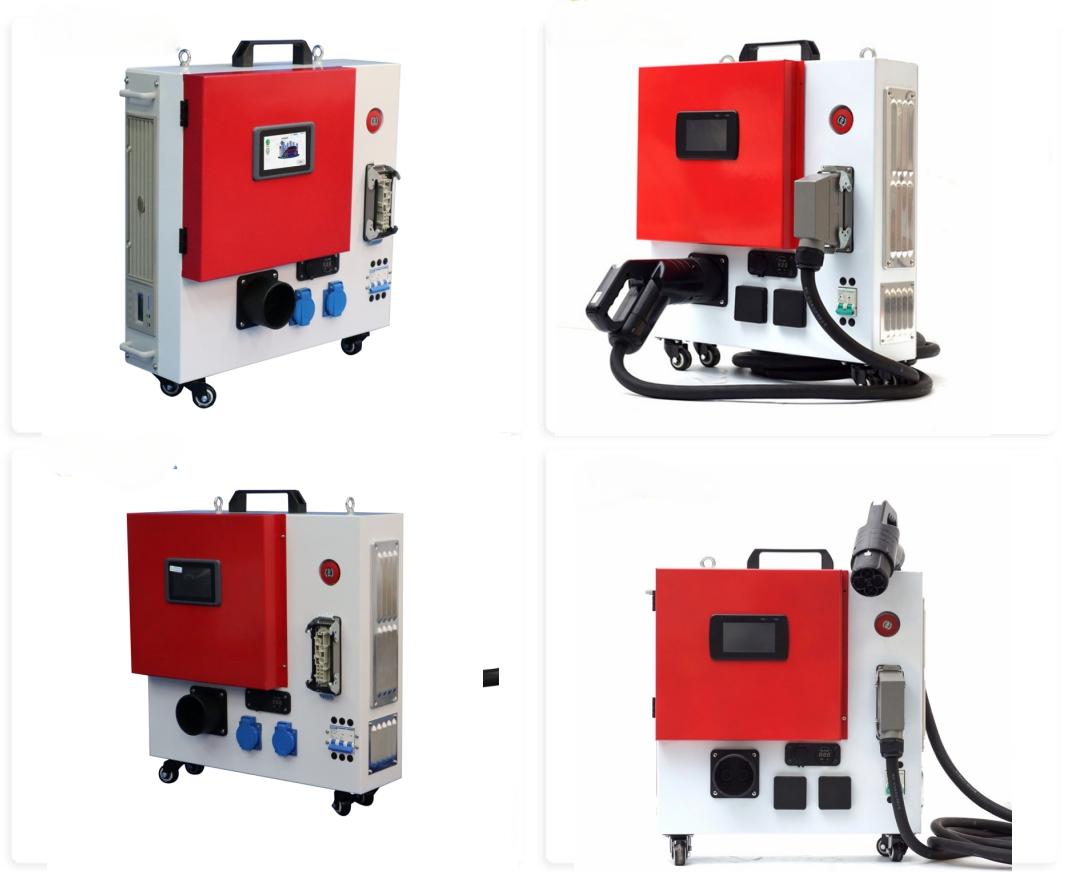

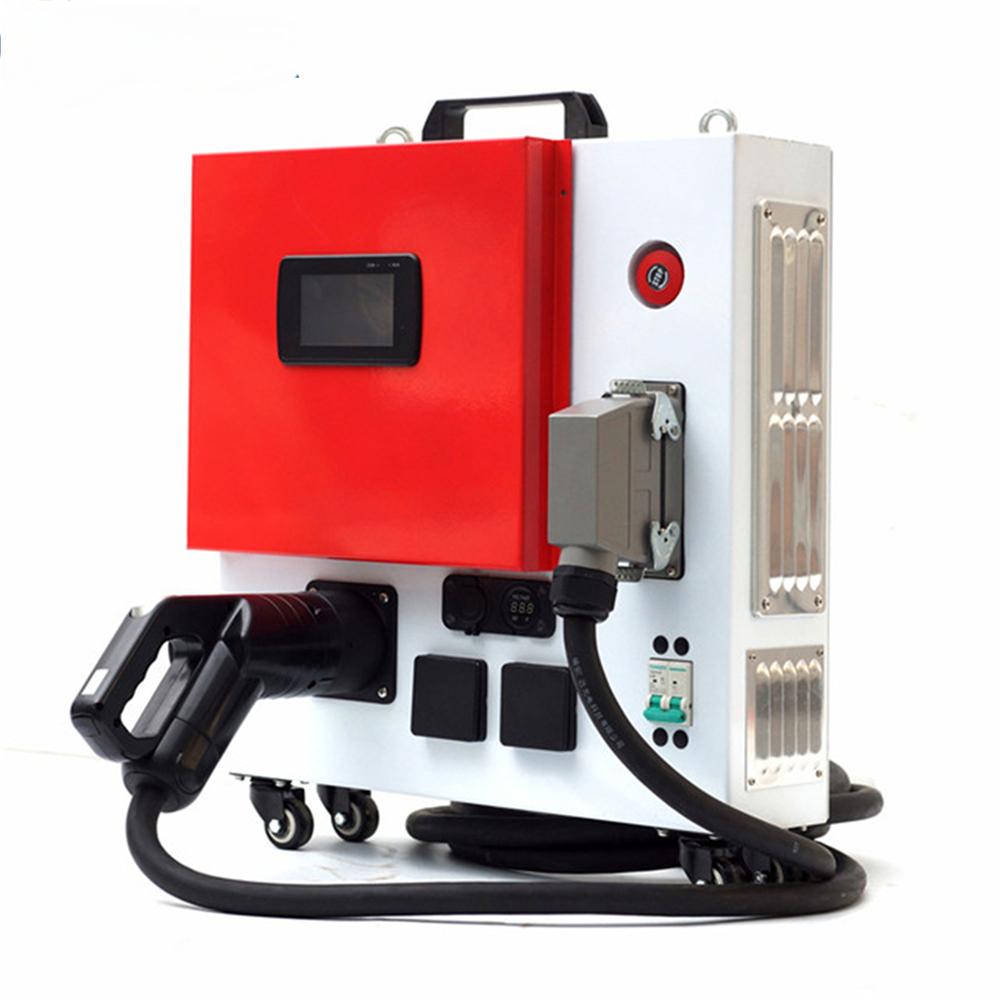

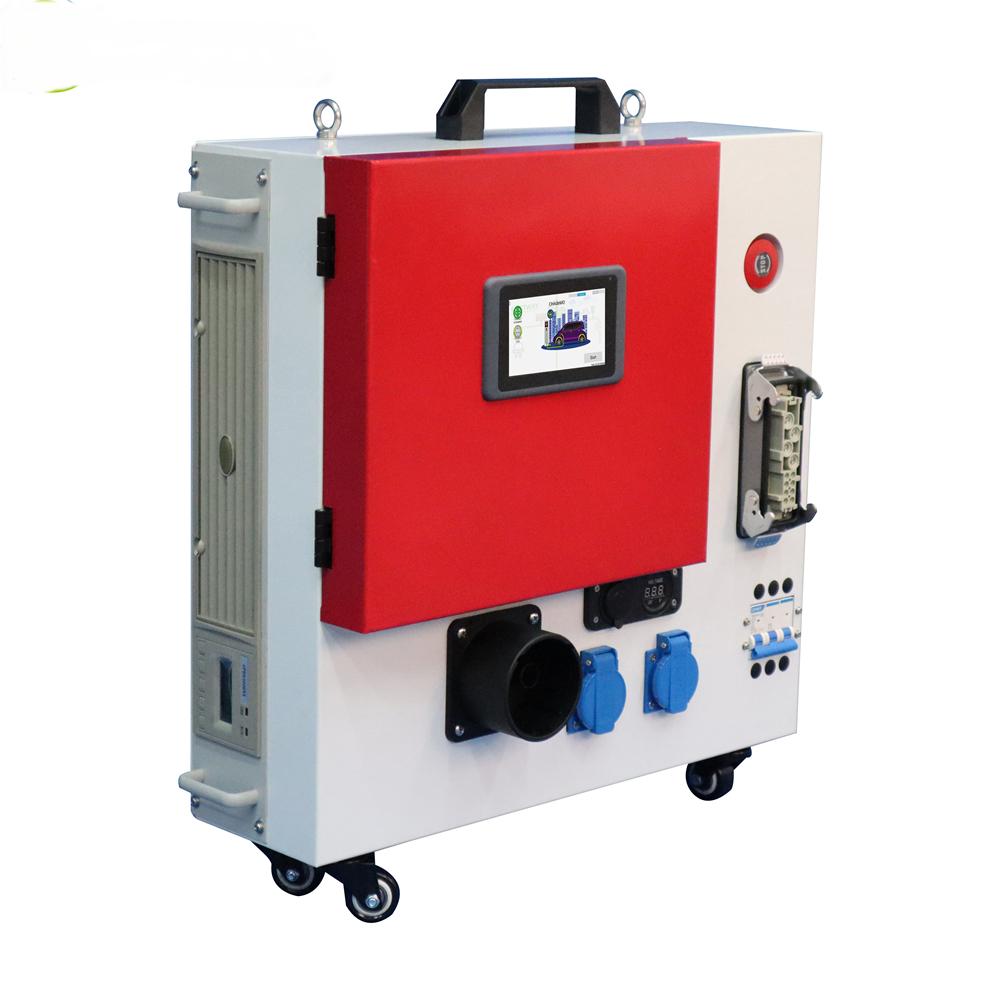

Model:MIDA-V2H
Rated voltage:DC 500V
Input Rating:380Vac± 15%
Power Factor:>0.99 @ full load
TFT-LCD Touch Panel:4.3' touch display
Certification:CE ROHS
PRODUCT INTRODUCTION:
1) Warranty time: 12 months.
2) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not.
3) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.
4) Production service: keep tracking for the progress of production, you will know how they are produced.
Car brand
Model
Support
Nissan
Leaf(21 kwh)
Yes
E-NV200(21 kwh)
Yes
Evalia(21 kwh)
Yes
Mitsubishi
Outlander(10 kwh)
Yes
Imiev/C-Zero/ION(14.7kwh)
Yes
Toyota
Mirai(26 kwh)
Yes
Honda
Fit (18 kwh)
Yes
4KW power rating
200-420Vdc input
200-240Vac output
Up to 99% efficiency
Transformer isolated
Rated 20Amax
Touch screen features power monitoring data-real time KW and amp draws,EV battery state of charge.
CE and ROHS Cetificate,we are members of CHAdeMO Association.
nput Voltage range
200-420Vdc
Power range
0-500VA(4KW)
Current range(DC)
0-20A
Current range(AC bypass)
0-20A
Efficiency(max)
95%
Protection
Input OCP OCP
Voltage & Frequency Window,(DC Injection TBD)(external fuse)
Over Temperature
70°C at main Heatsink. Output Power derating at > 50°C temperature
Isolation Monitor Device
Disconnect @ < 500kD
General
Protection Class(isolation)
Class1 Transformer design
Cooling
Fan cooled
IP protection class
IP20
Working (storage) Temp.& Humi.
20~50°C, 90% Non Condensing
Dimension&WeightLifetime(MTBF)
560X223X604mm, 25.35kg >100,000 hours @ 25°C (Designed to meet < 0.1%/year)
Safety & EMC CE
Safety
EN60950
Emission(Industrial)
EN55011,class A (optional B)
Immunity(Industrial)
EN61000-4-2, EN61000-4-3,EN61000-4-4,EN6100D-4-5,EN61 ODO-4-6,EN61000-4-11
